Most Recent Updates: 11/16/2018

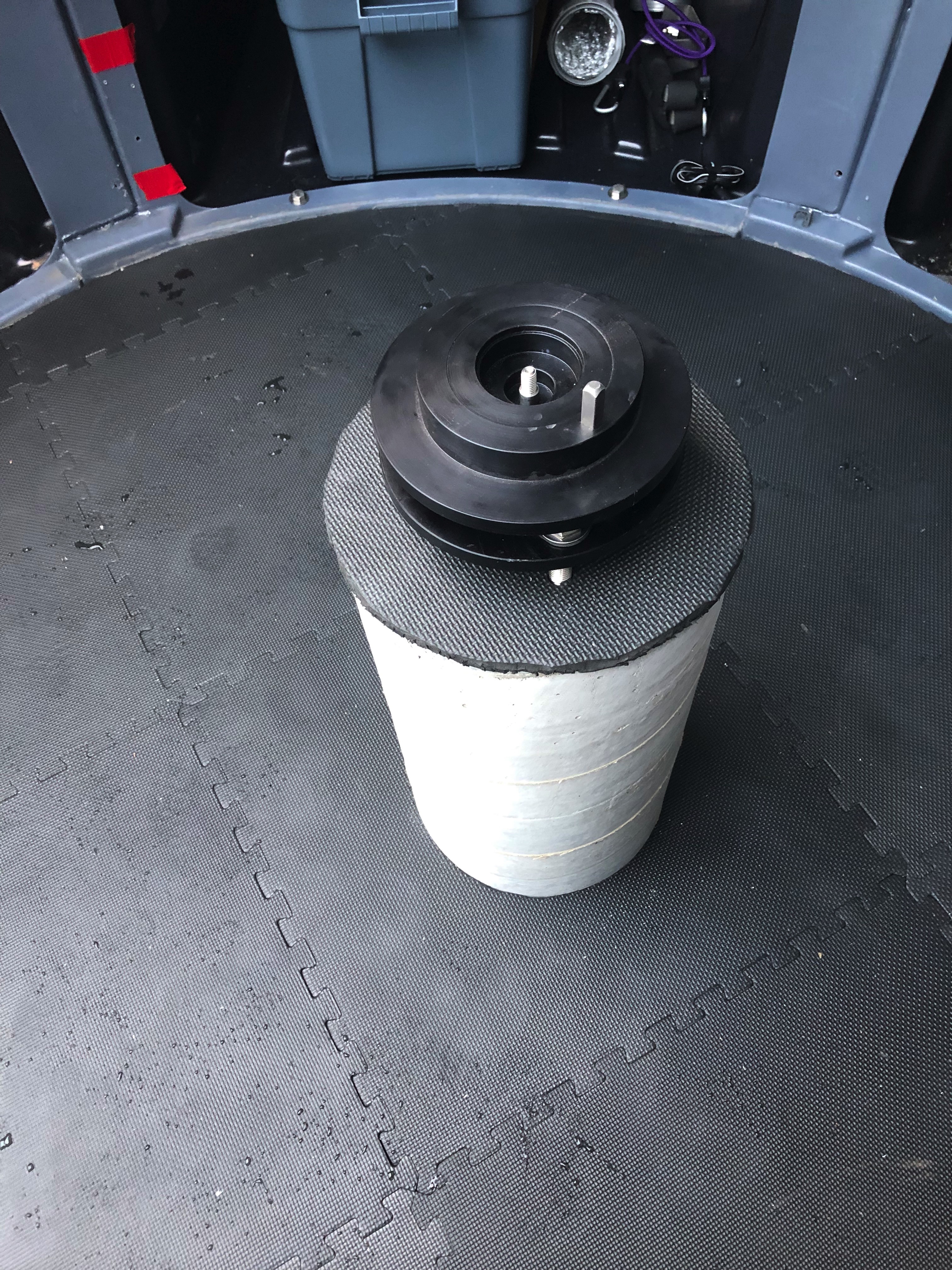

Finished pier plate pointing north ready to accept my mount
Finished pier plate pointing north ready to accept my mount

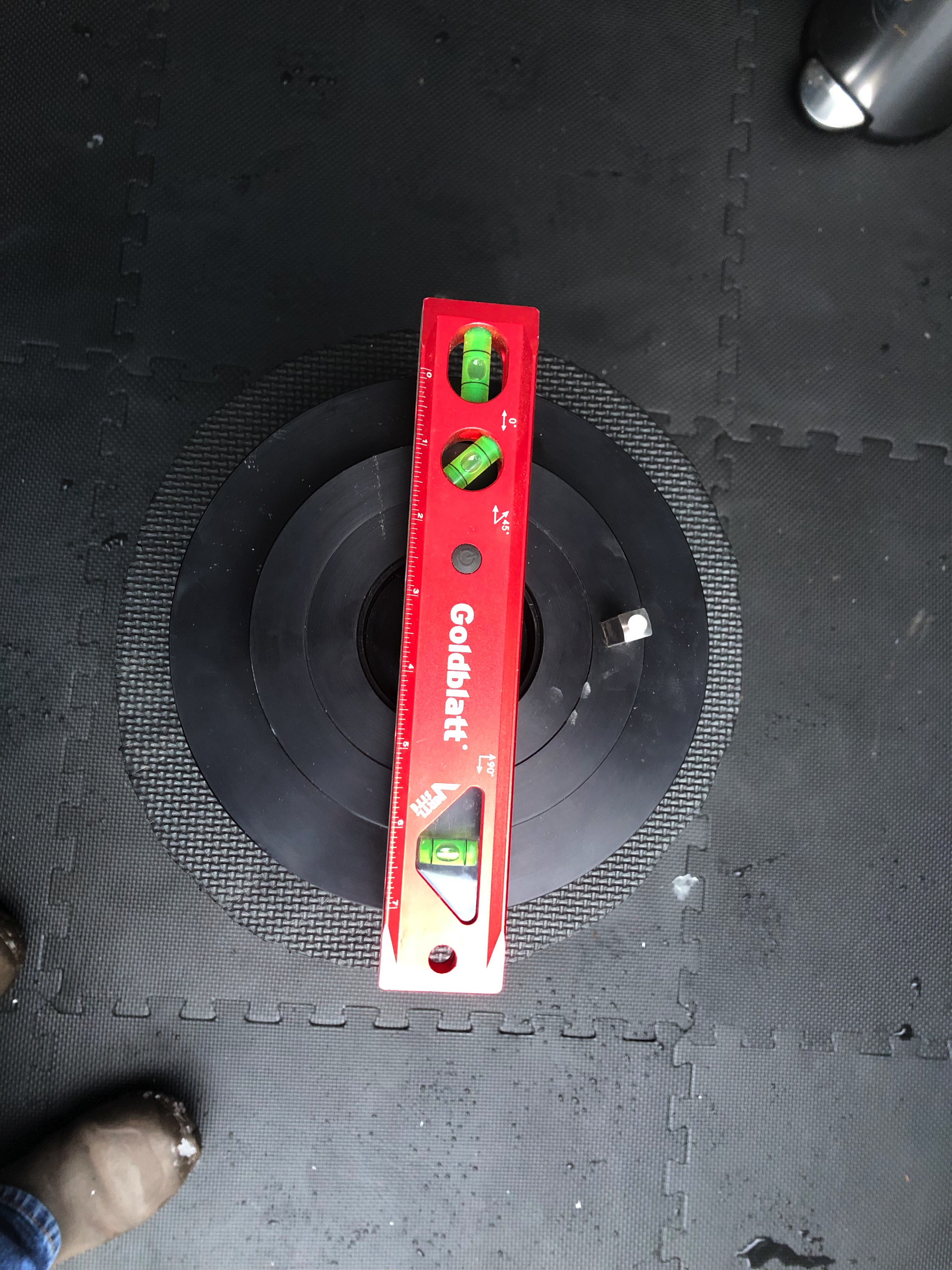

Leveling the pier plate
Leveling the pier plate

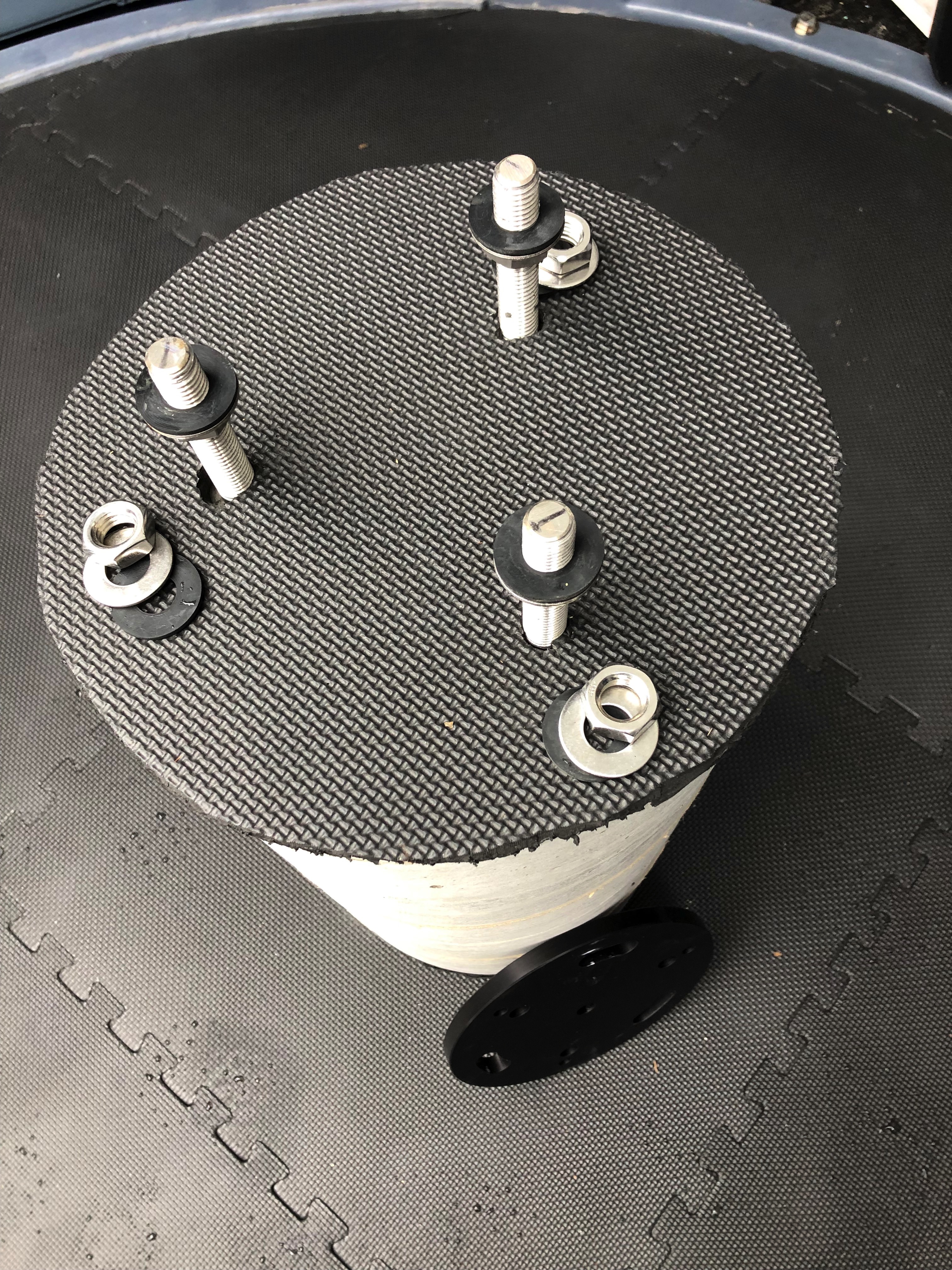

Ready for adapter plate
Ready for adapter plate
Trex complete, dissolved a pile and moved a pile
Trex complete, dissolved a pile and moved a pile
Trex complete
Trex complete

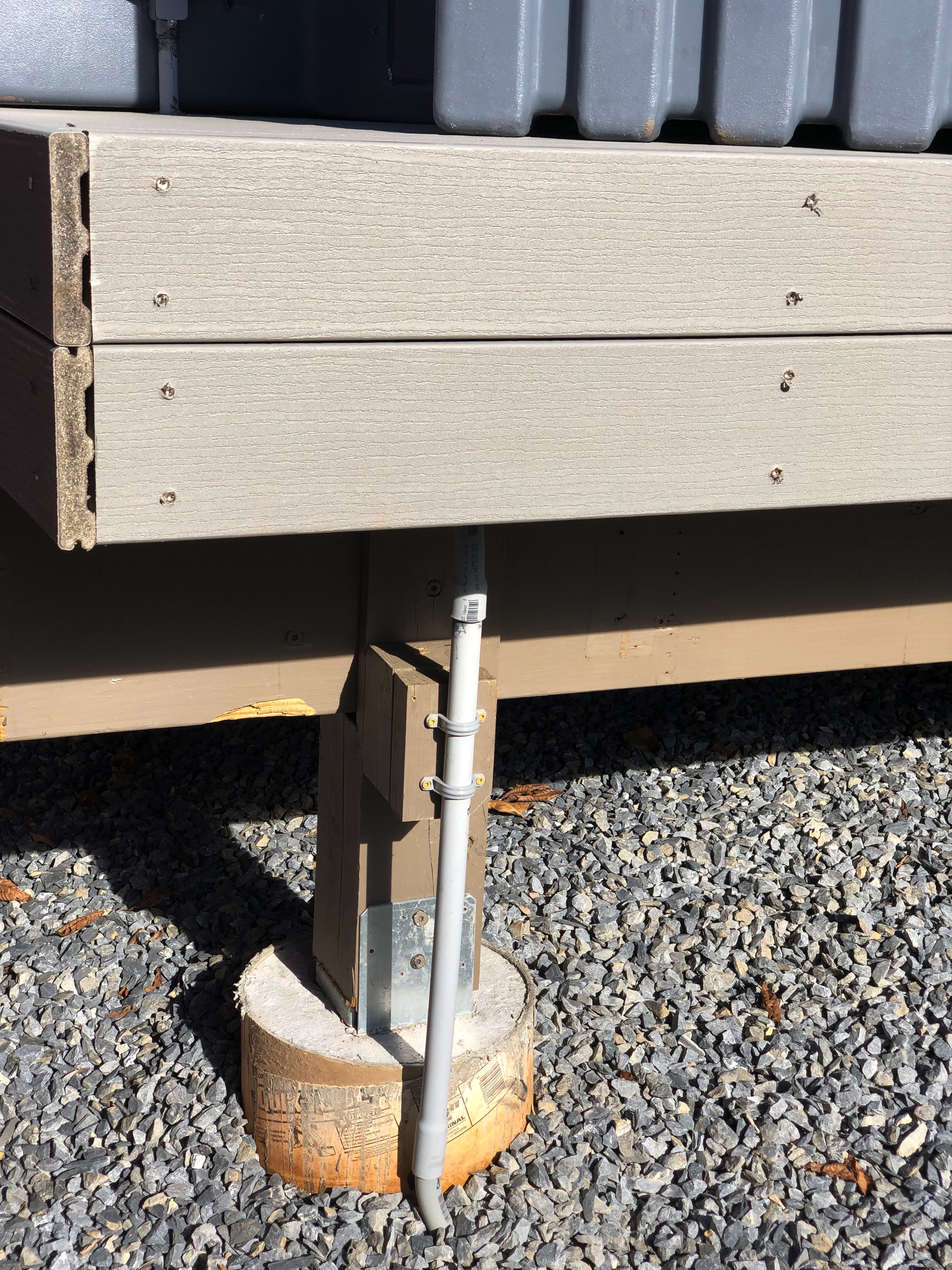

Electrical secured
Electrical secured
Power washed
Power washed
Trex installed
Trex installed
Trex installed
Trex installed

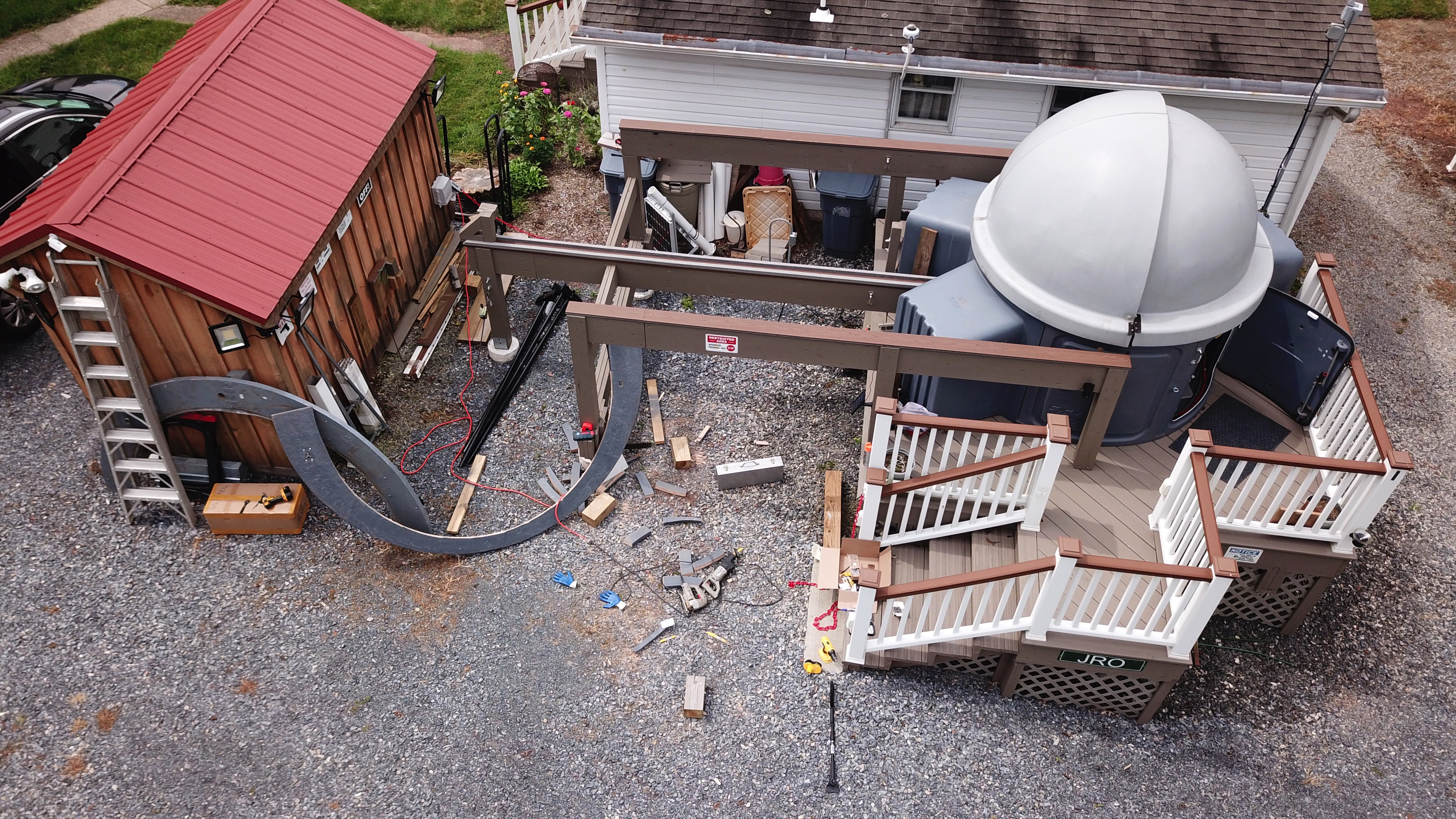

Pier view from outside
Pier view from outside
Secondary Dome installed
Secondary Dome installed

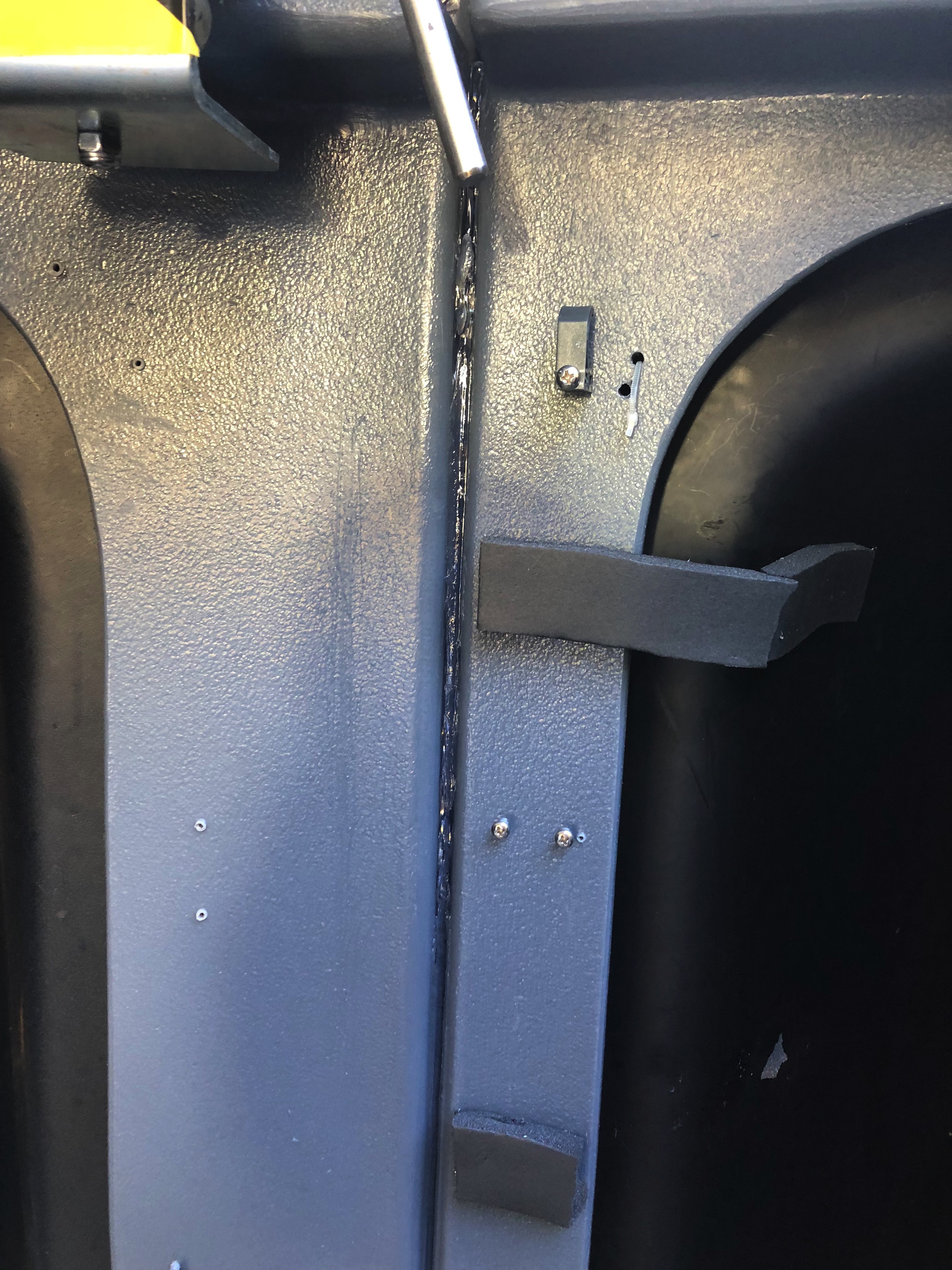

Lexel injected
Lexel injected

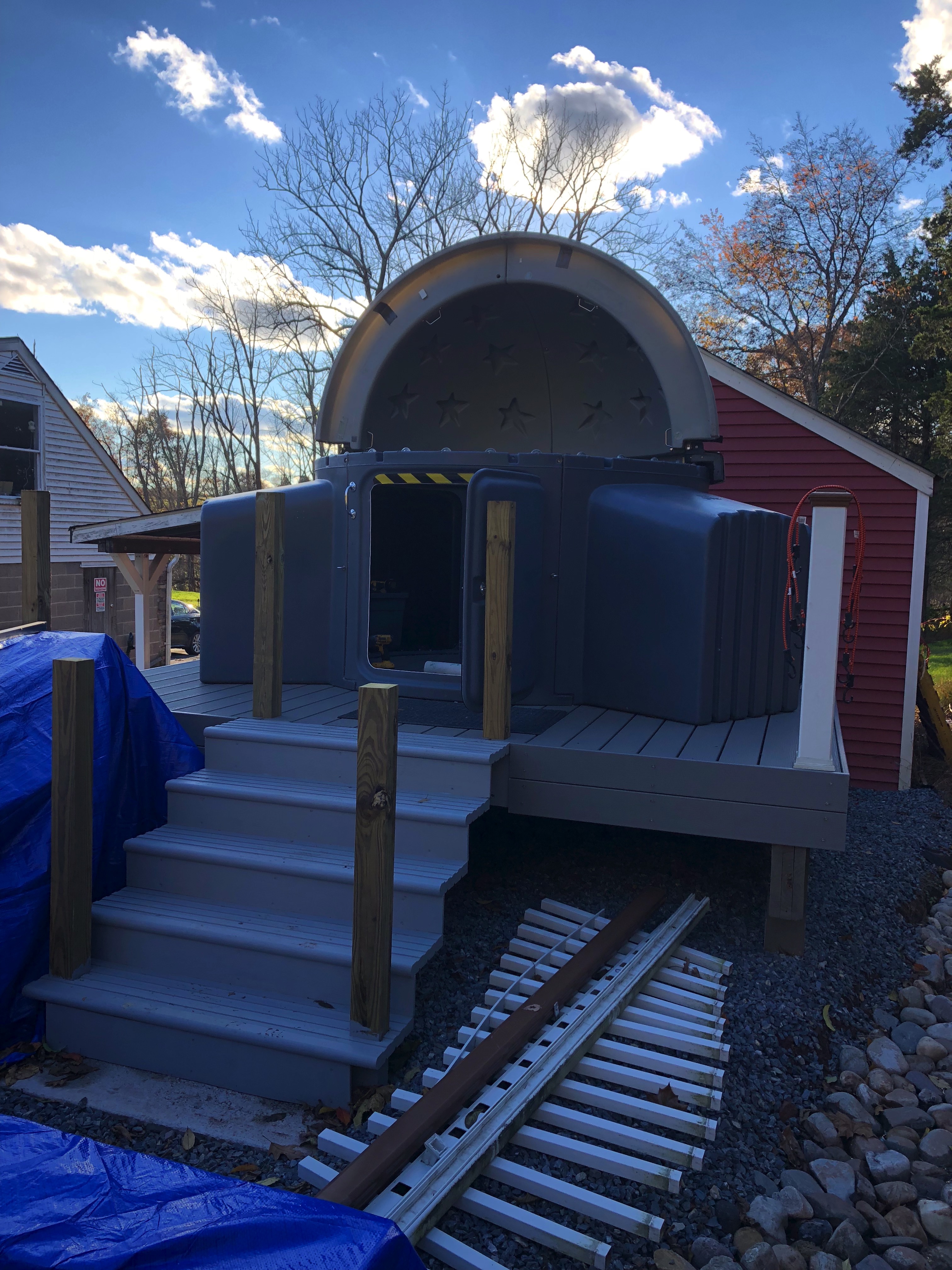

Primary dome installed
Primary dome installed
Remove old Lexel, there was about a softball sized pile when I was done!
Remove old Lexel, there was about a softball sized pile when I was done!
Bays roughed in.  Tarped off for rain, this leaked and the inside got soaked (it was empty), which prompted mopping out the inside the next day.
Bays roughed in. Tarped off for rain, this leaked and the inside got soaked (it was empty), which prompted mopping out the inside the next day.

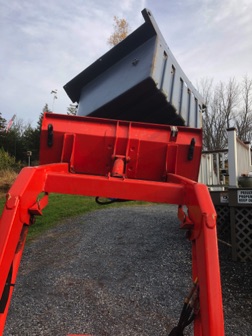

Literally Moving the POD a bay at a time
Literally Moving the POD a bay at a time

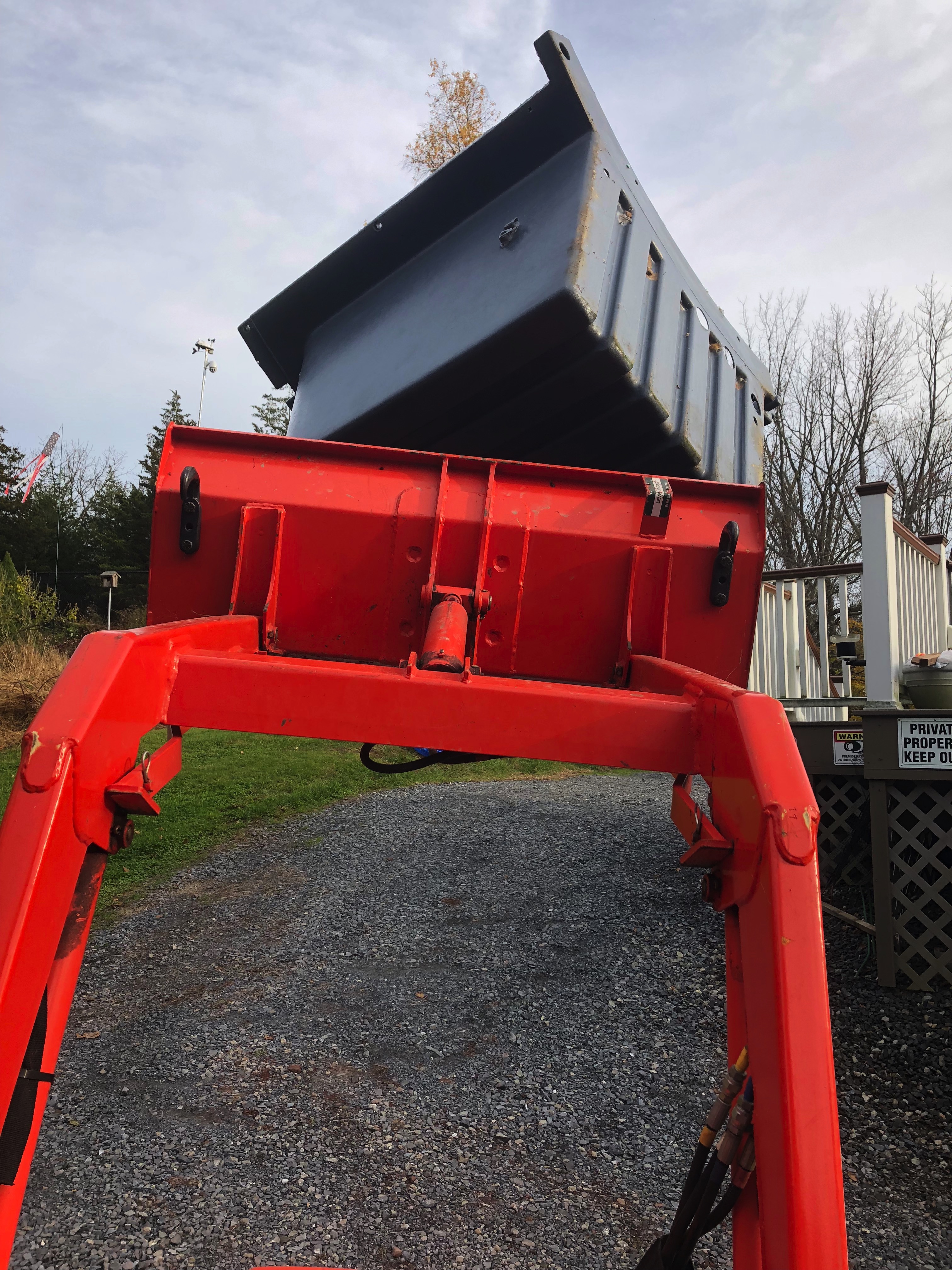

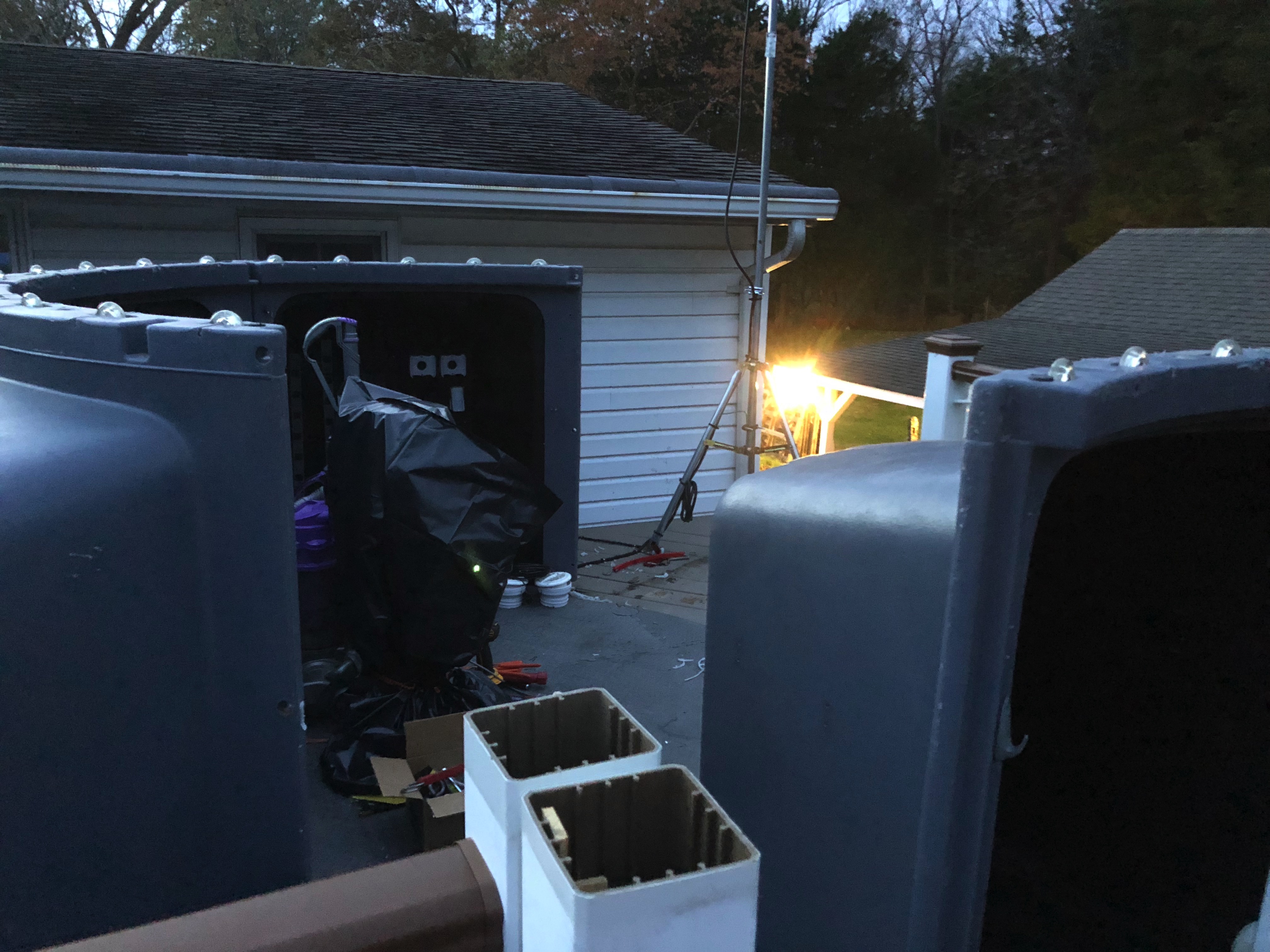

Moving the POD
Moving the POD
Moving the POD
Moving the POD

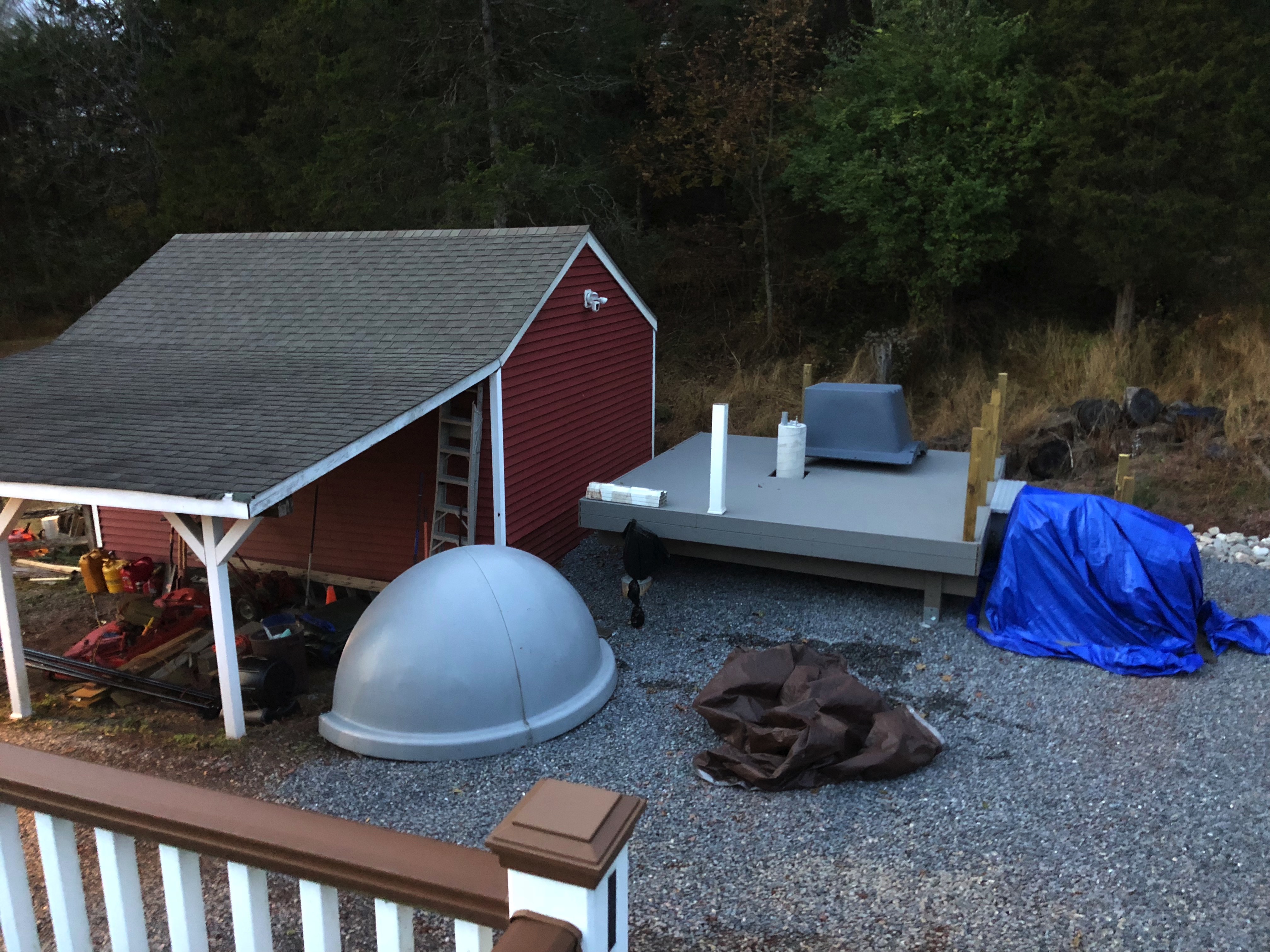

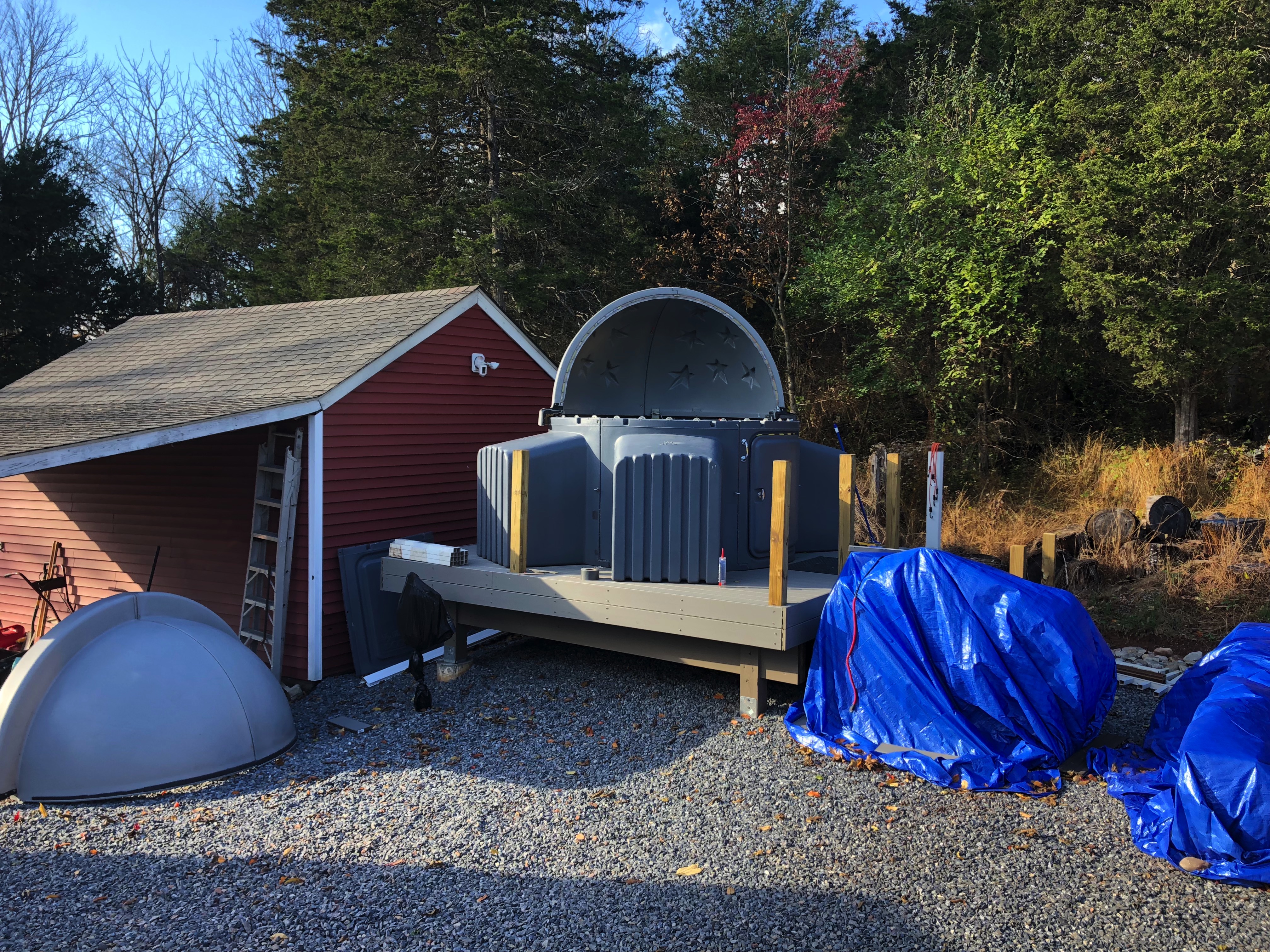

Moving the POD -Dome moved
Moving the POD -Dome moved
Moving the POD -Dome moved
Moving the POD -Dome moved

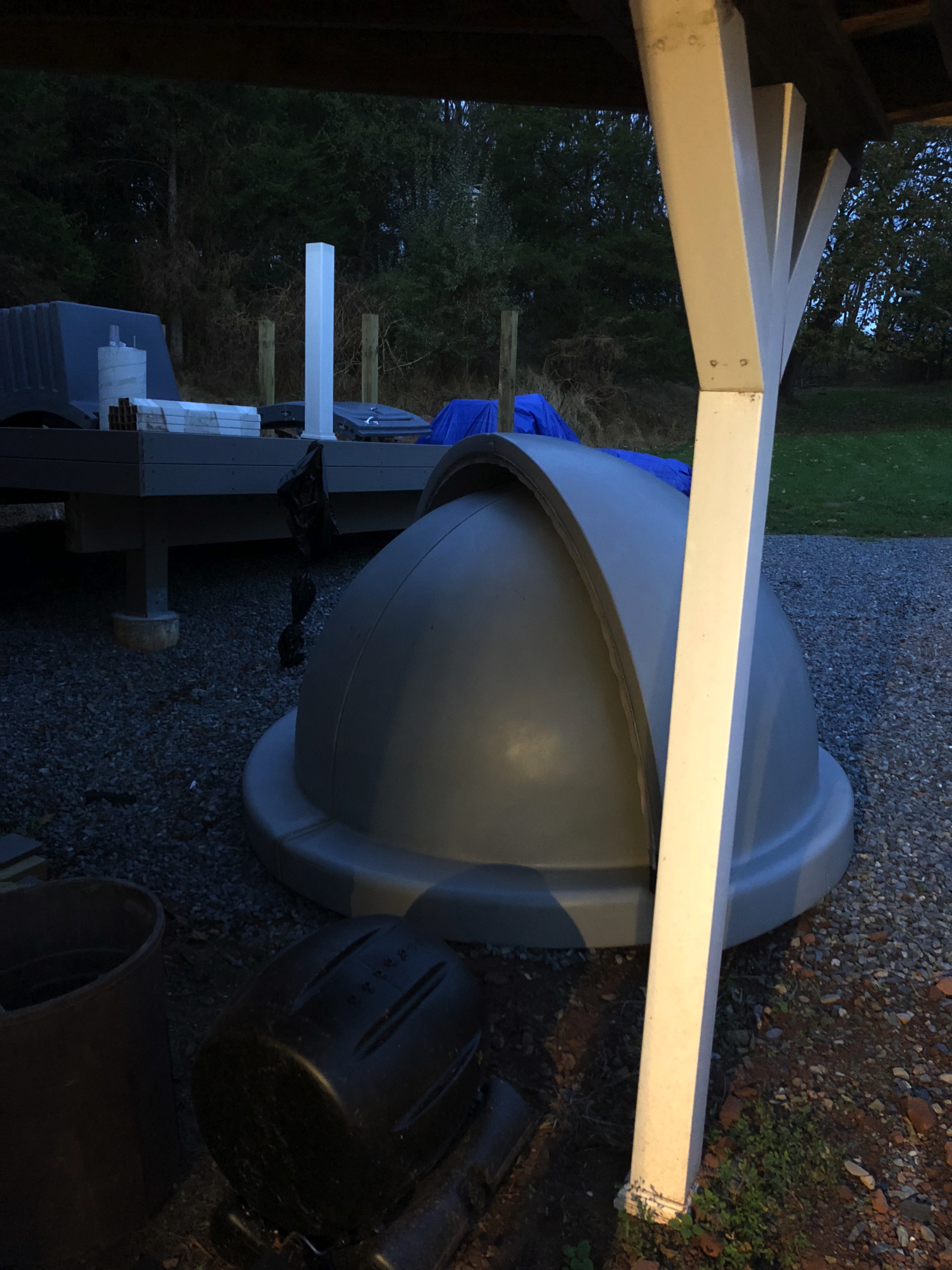

Moving the Dome
Moving the Dome

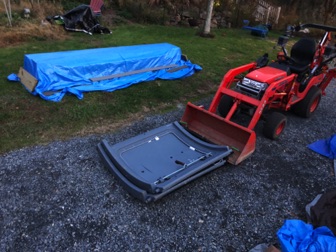

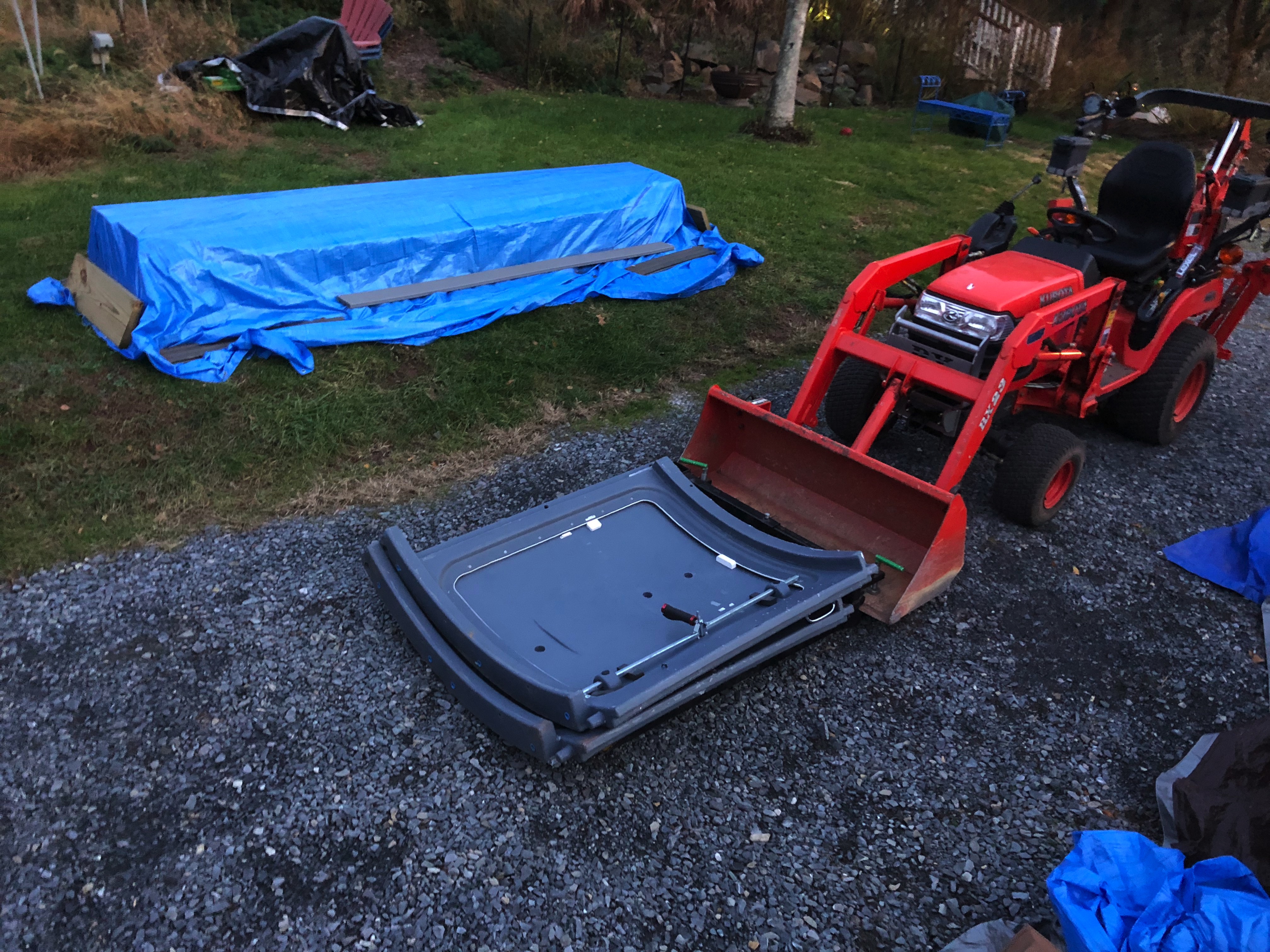

Moving the POD - Moving the door and the blank
Moving the POD - Moving the door and the blank
Stairs stained almost the same color
Stairs stained almost the same color

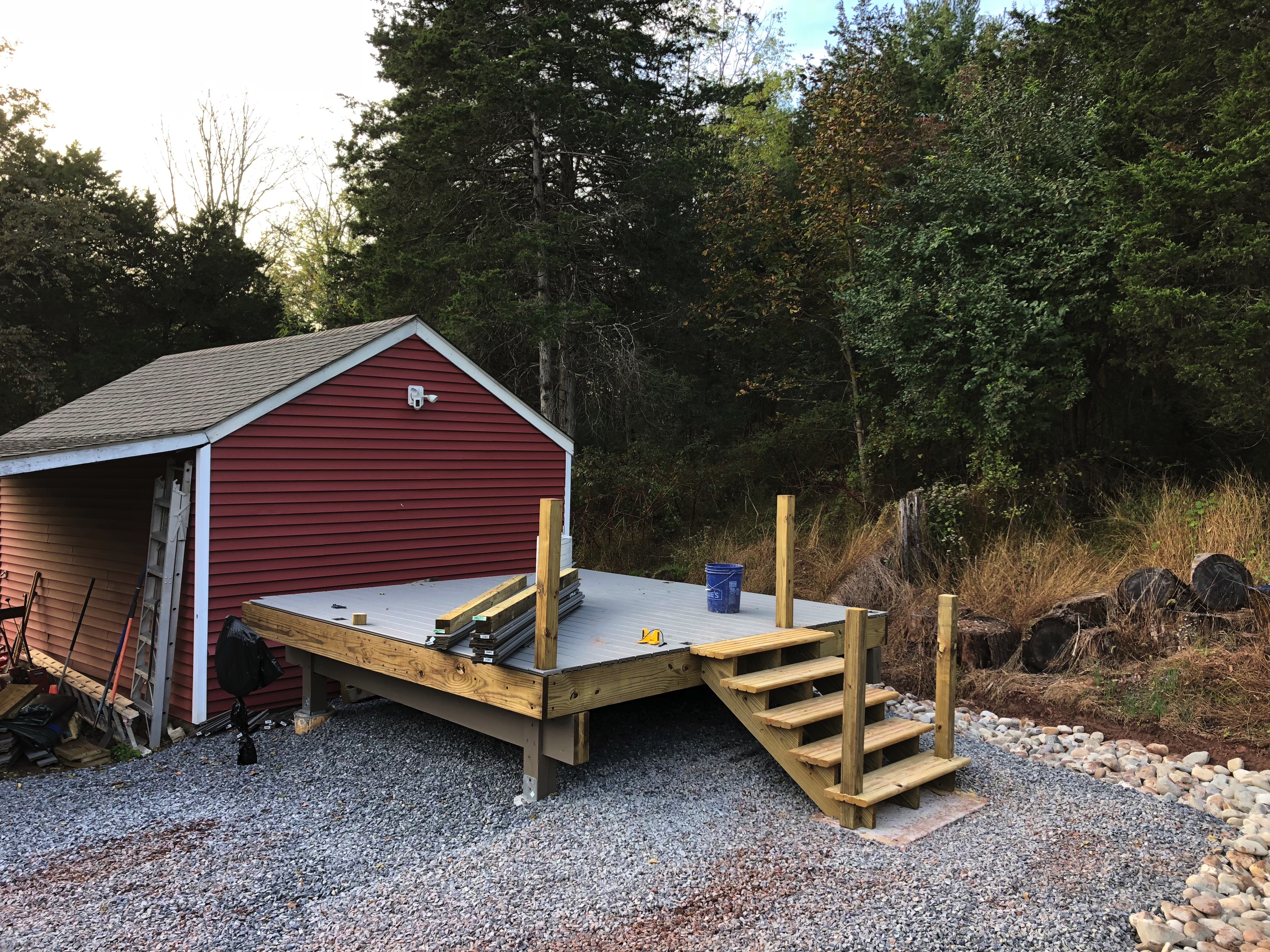

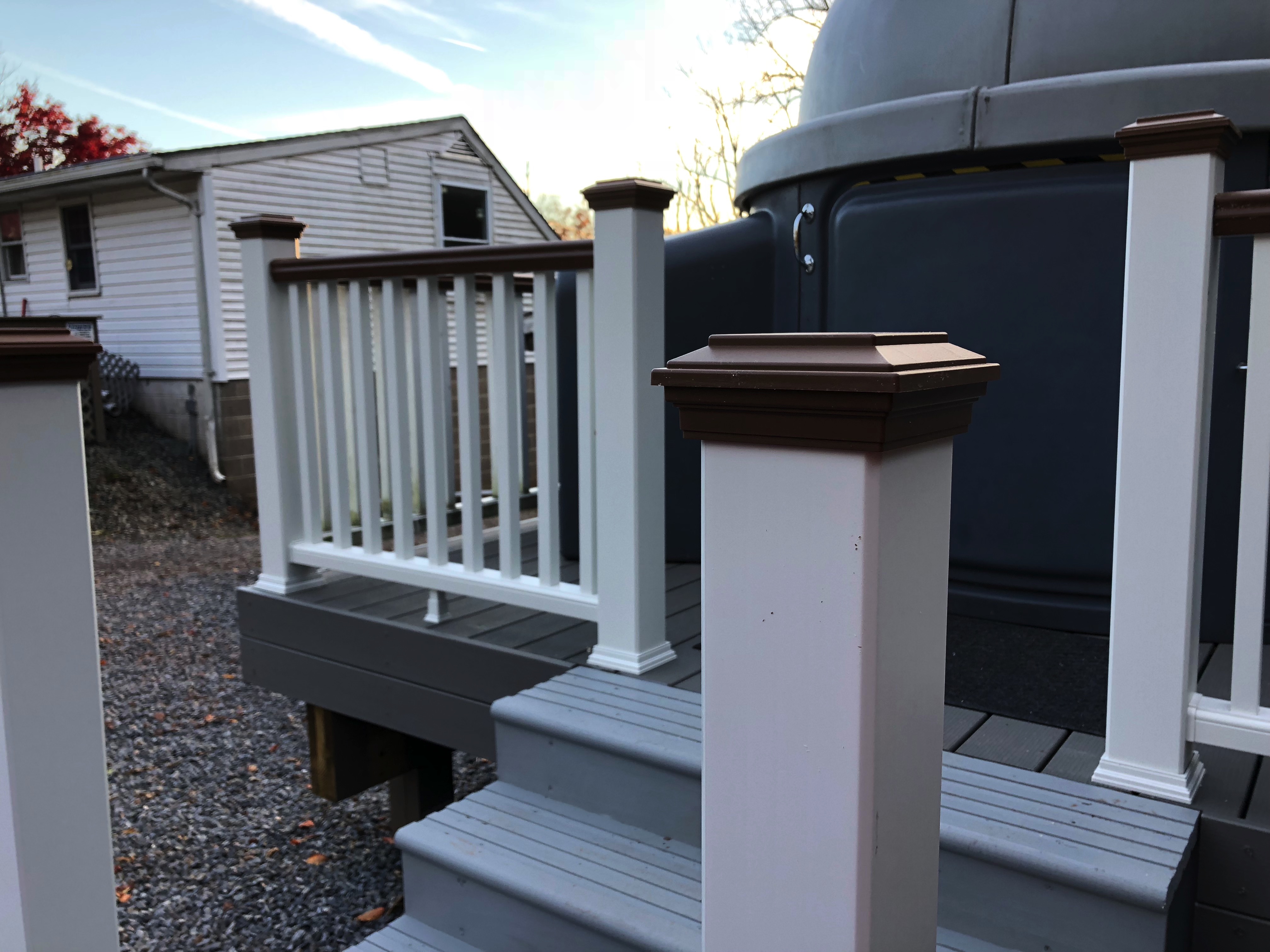

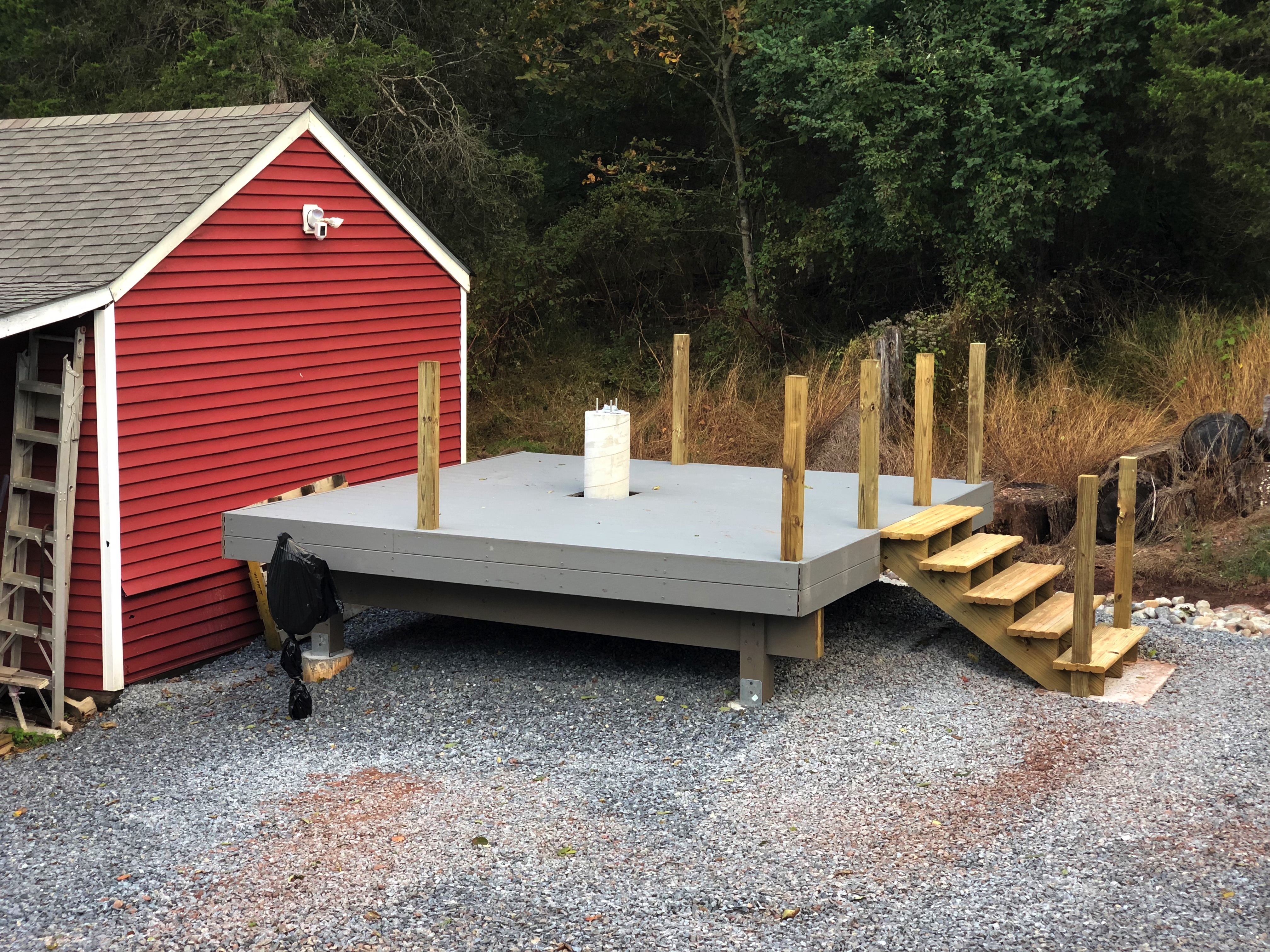

Posts and trim installed
Posts and trim installed
Started installing posts
Started installing posts

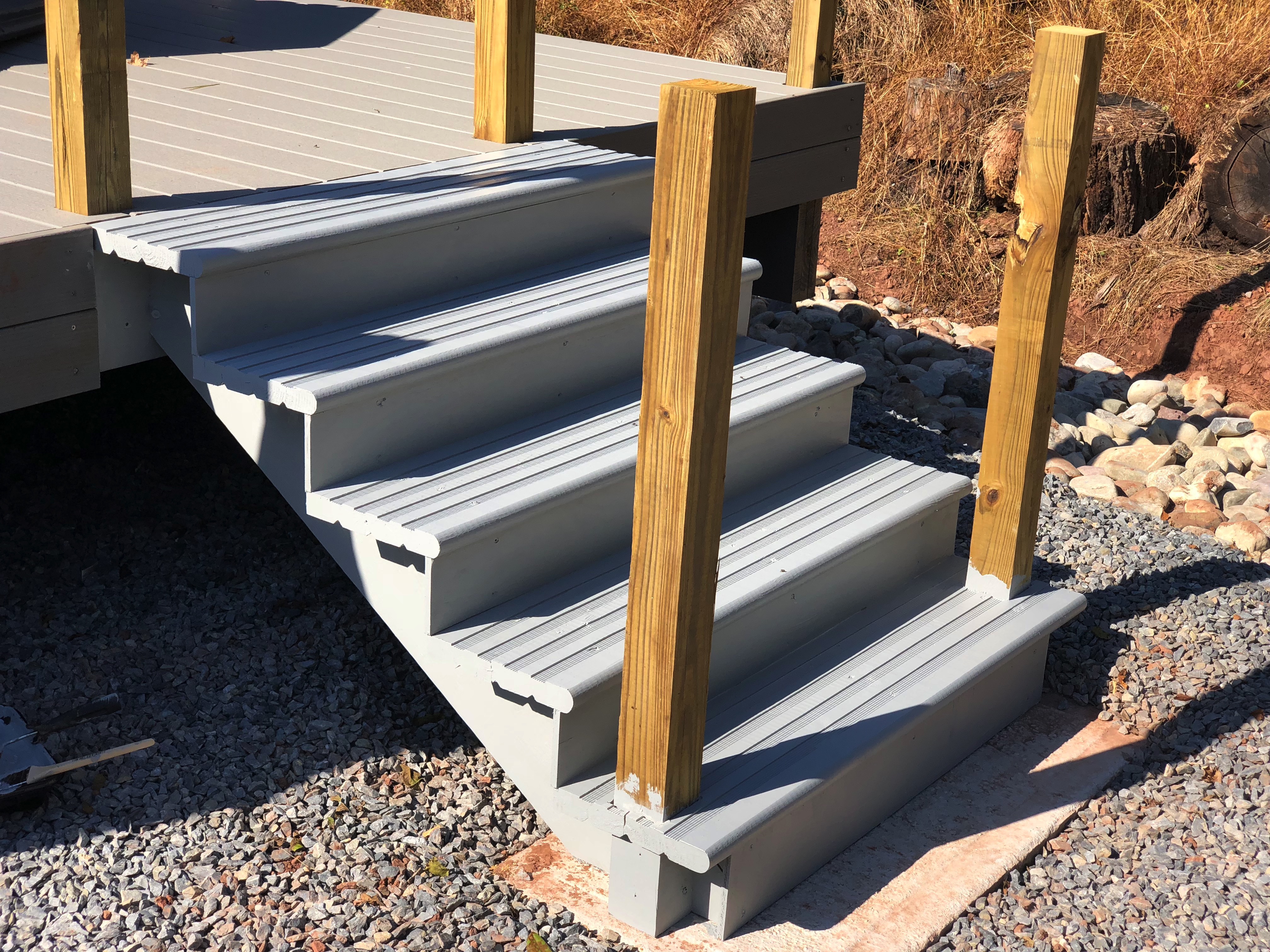

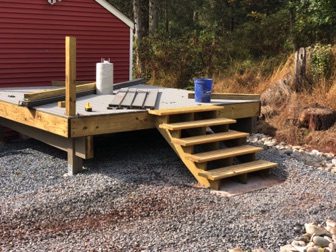

Stairs treads installed
Stairs treads installed

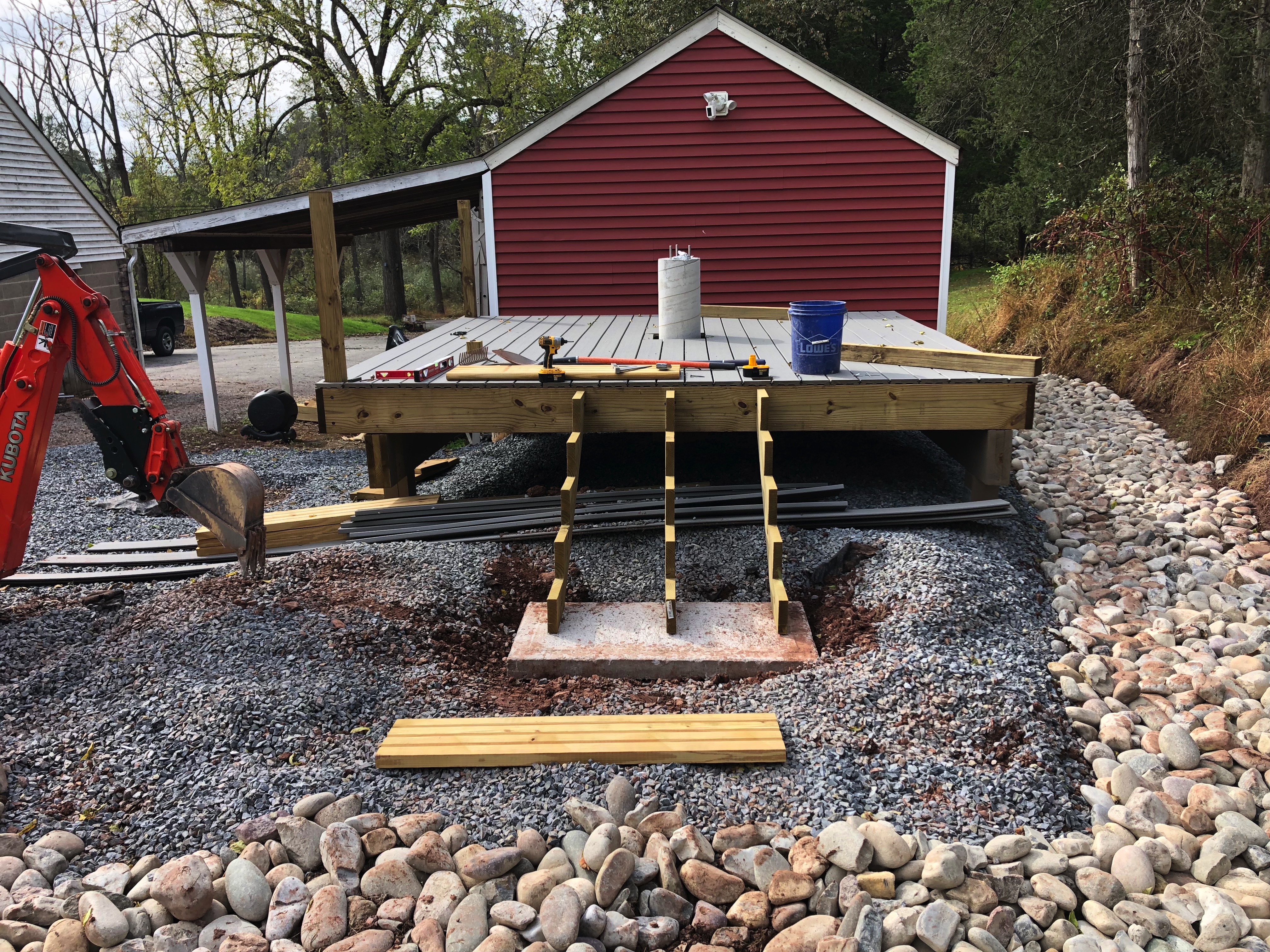

Moved Pad and started stairs
Moved Pad and started stairs

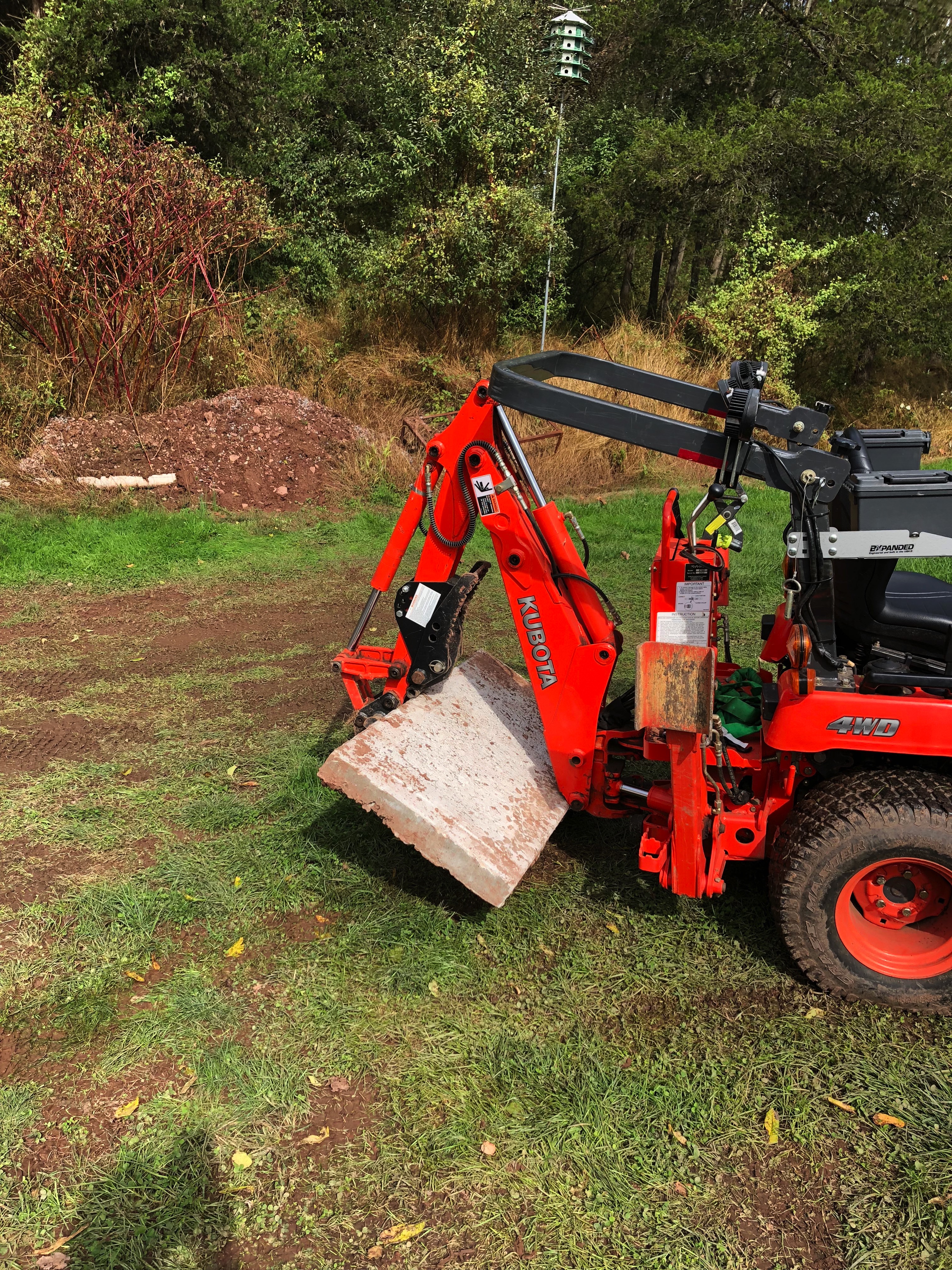

Moving the slab!
Moving the slab!

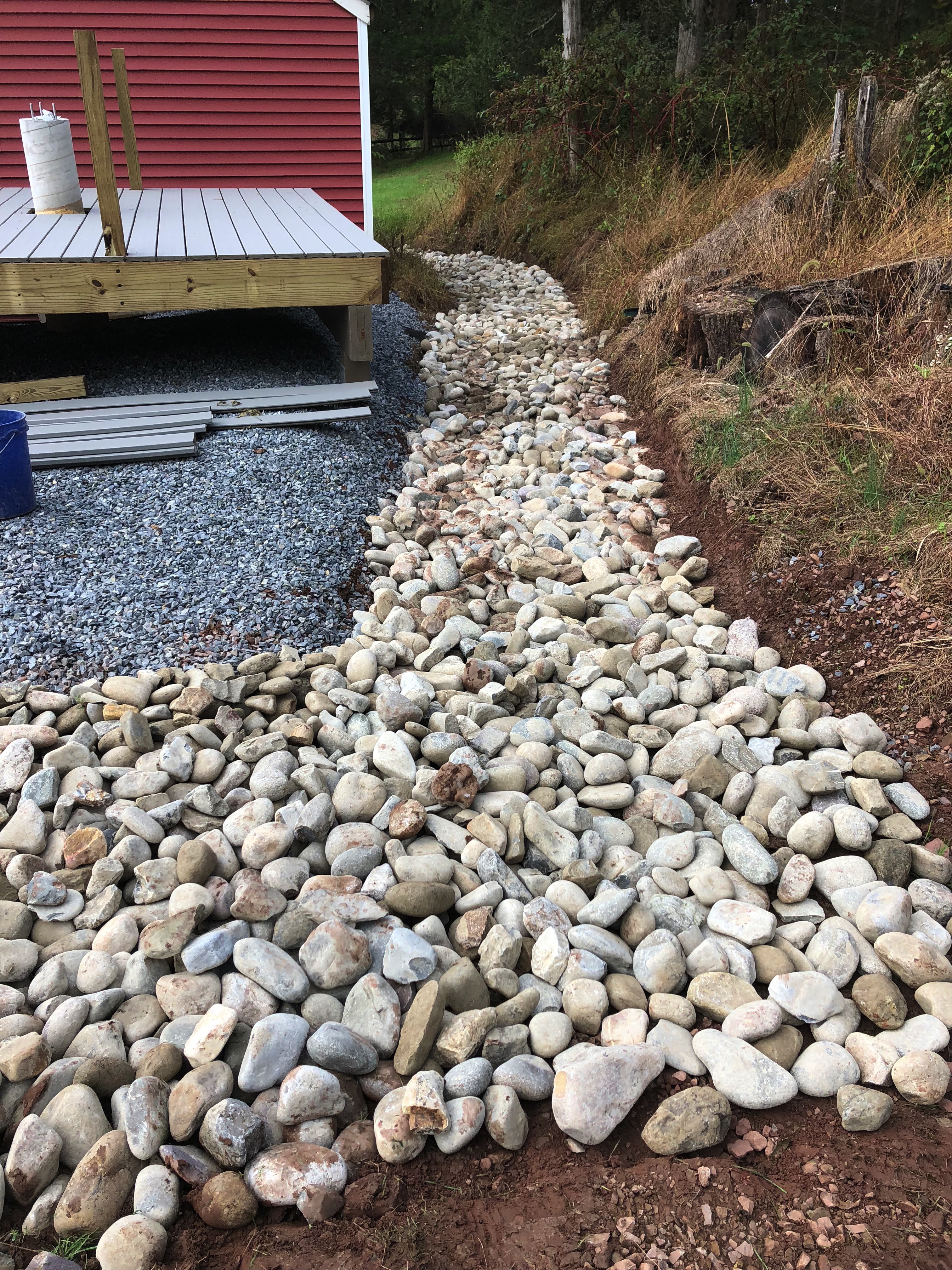

10/14 - Added river stone to my runoff path
10/14 - Added river stone to my runoff path

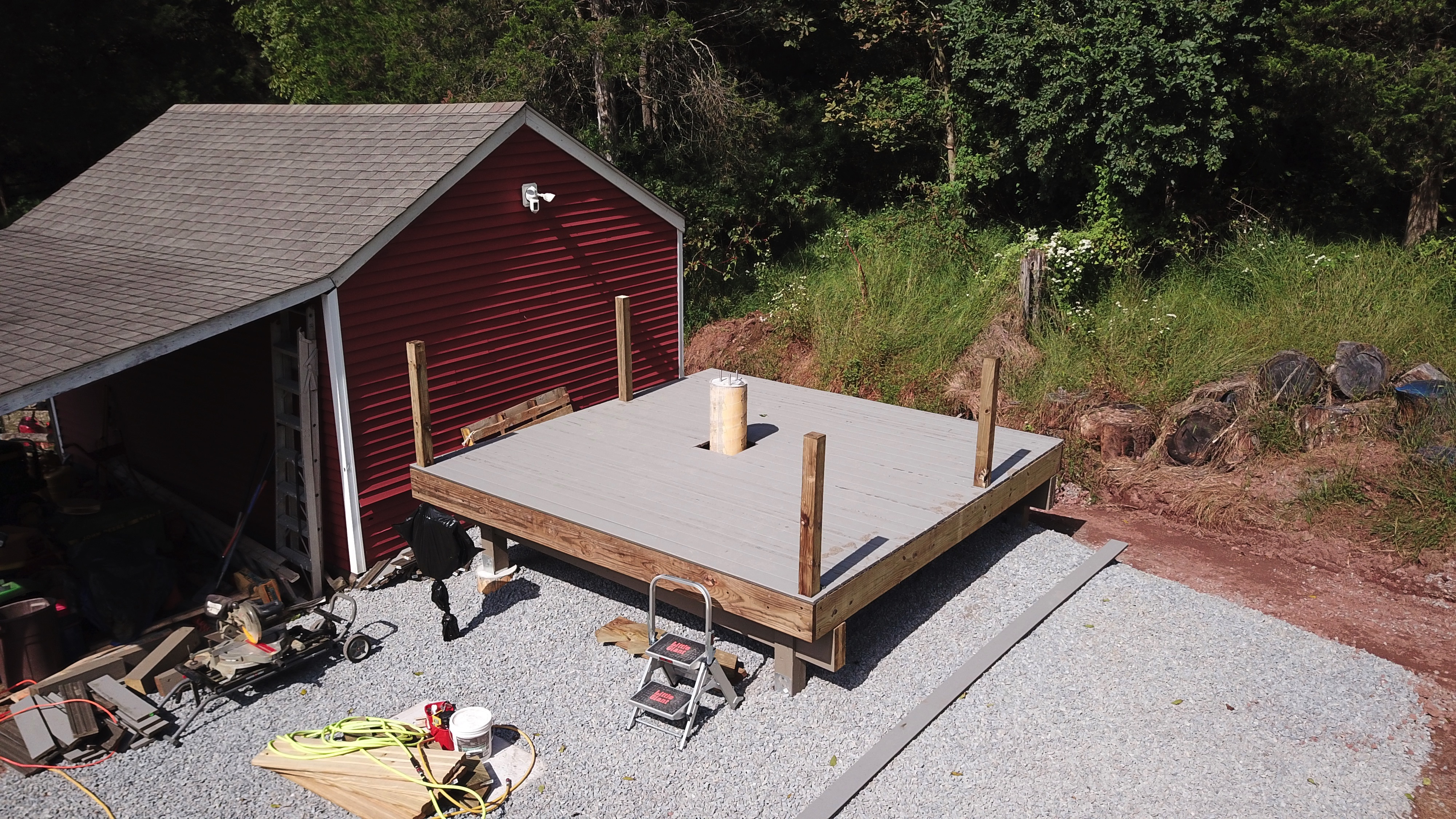

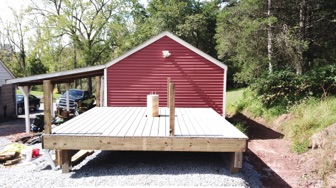

9/24 Progress
9/24 Progress
9/24 Progress
9/24 Progress
9/24 Progress
9/24 Progress

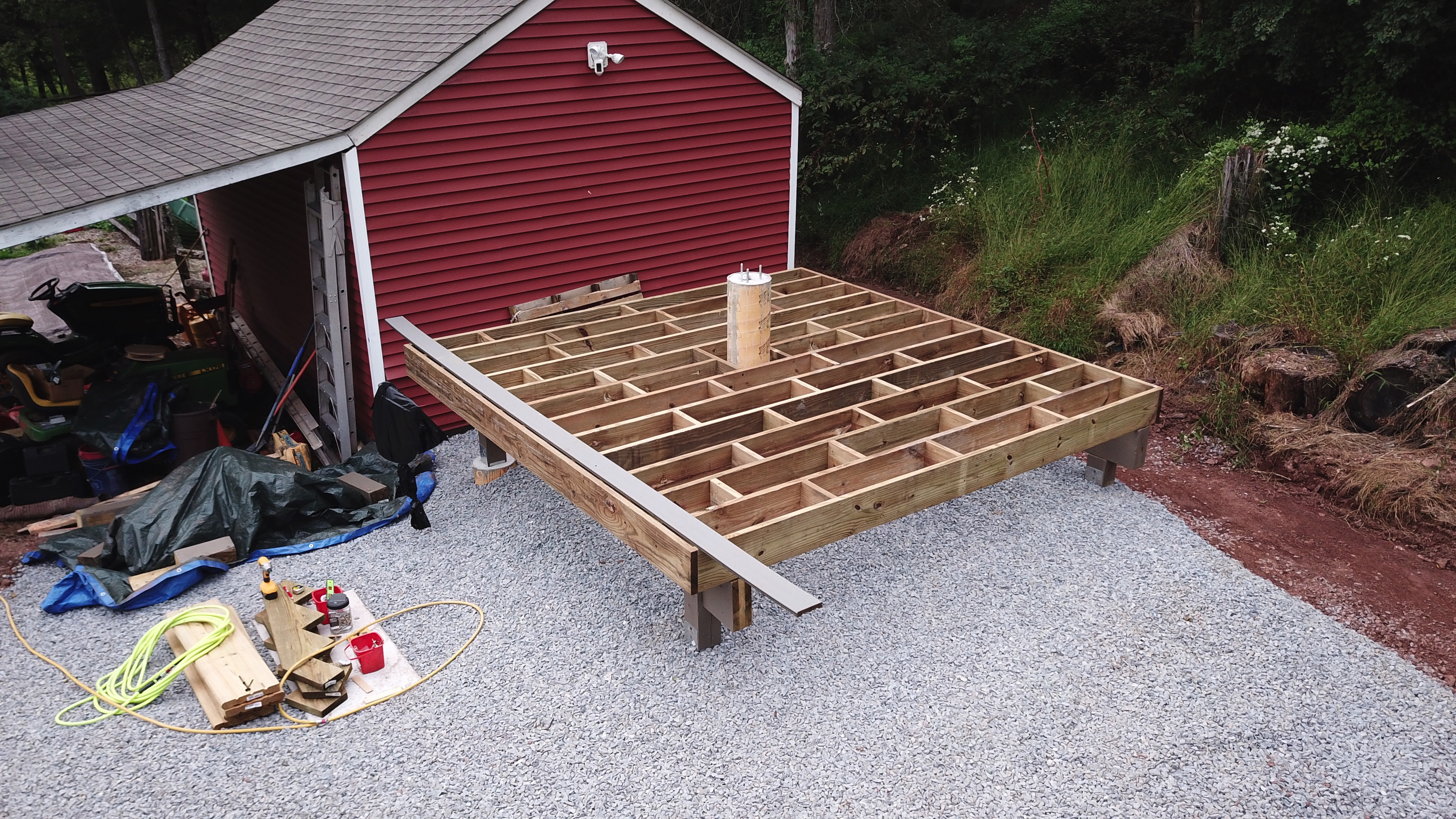

9/22 Progress
9/22 Progress

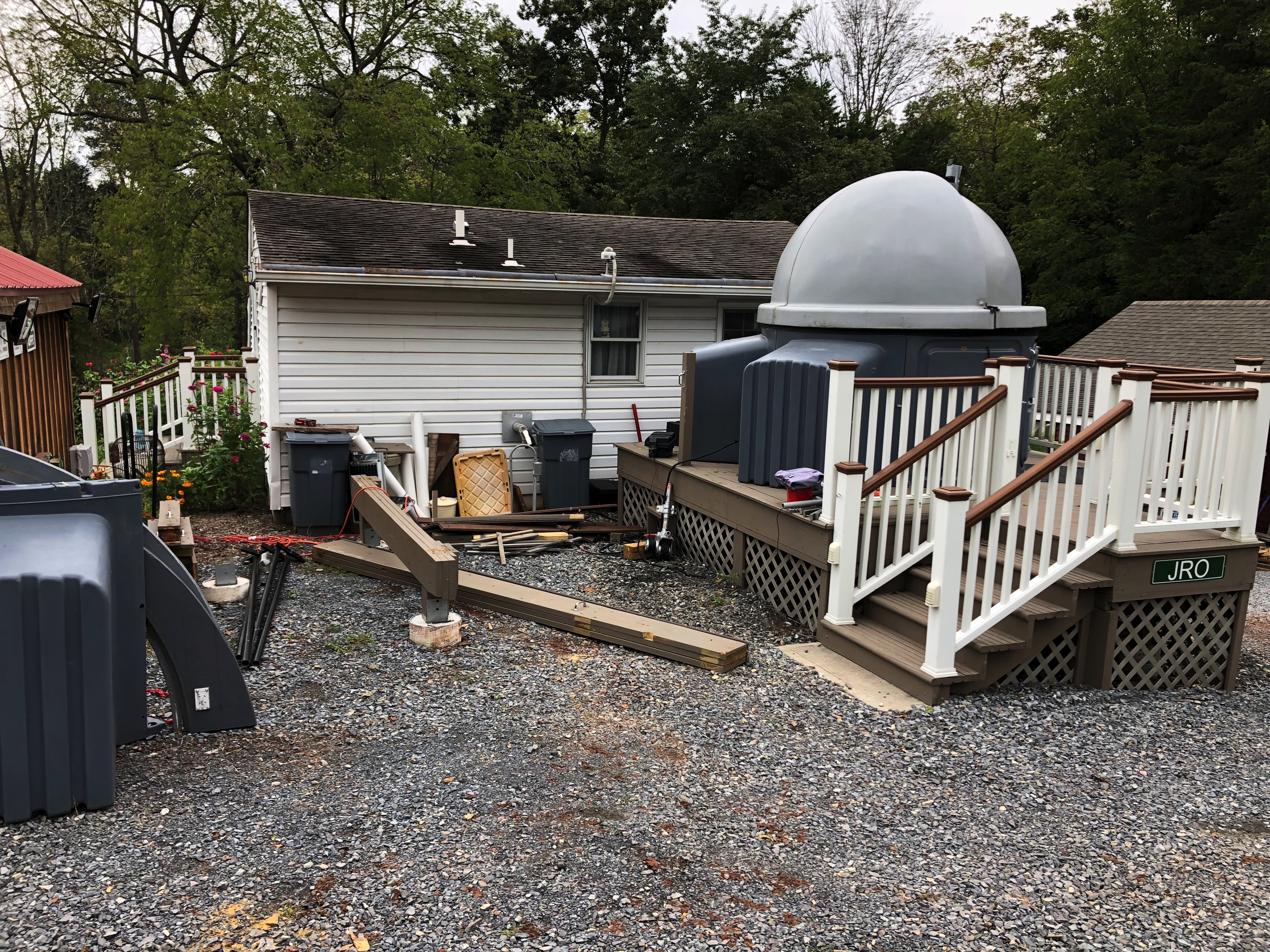

9/21 - Old Roll-off disassembled, parts needed for the new deck ready to go
9/21 - Old Roll-off disassembled, parts needed for the new deck ready to go

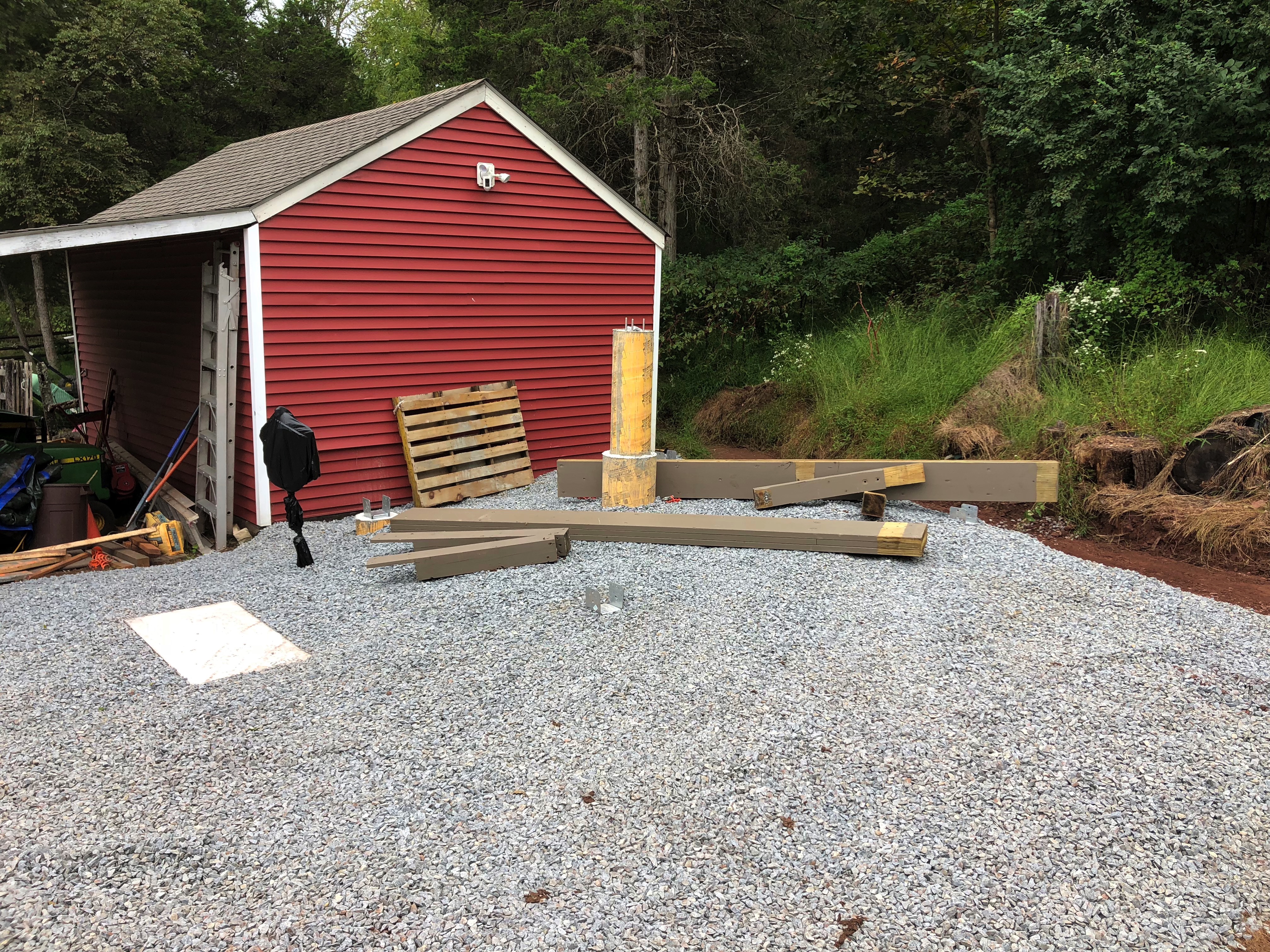

9/21 - Posts and beams ready for assembly
9/21 - Posts and beams ready for assembly
9/21 - Moving beams for the new deck
9/21 - Moving beams for the new deck

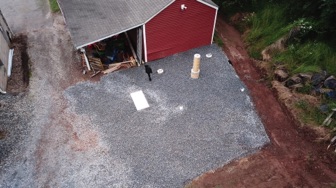

9/21 - Stone is spread
9/21 - Stone is spread
9/21 - Stone is here
9/21 - Stone is here

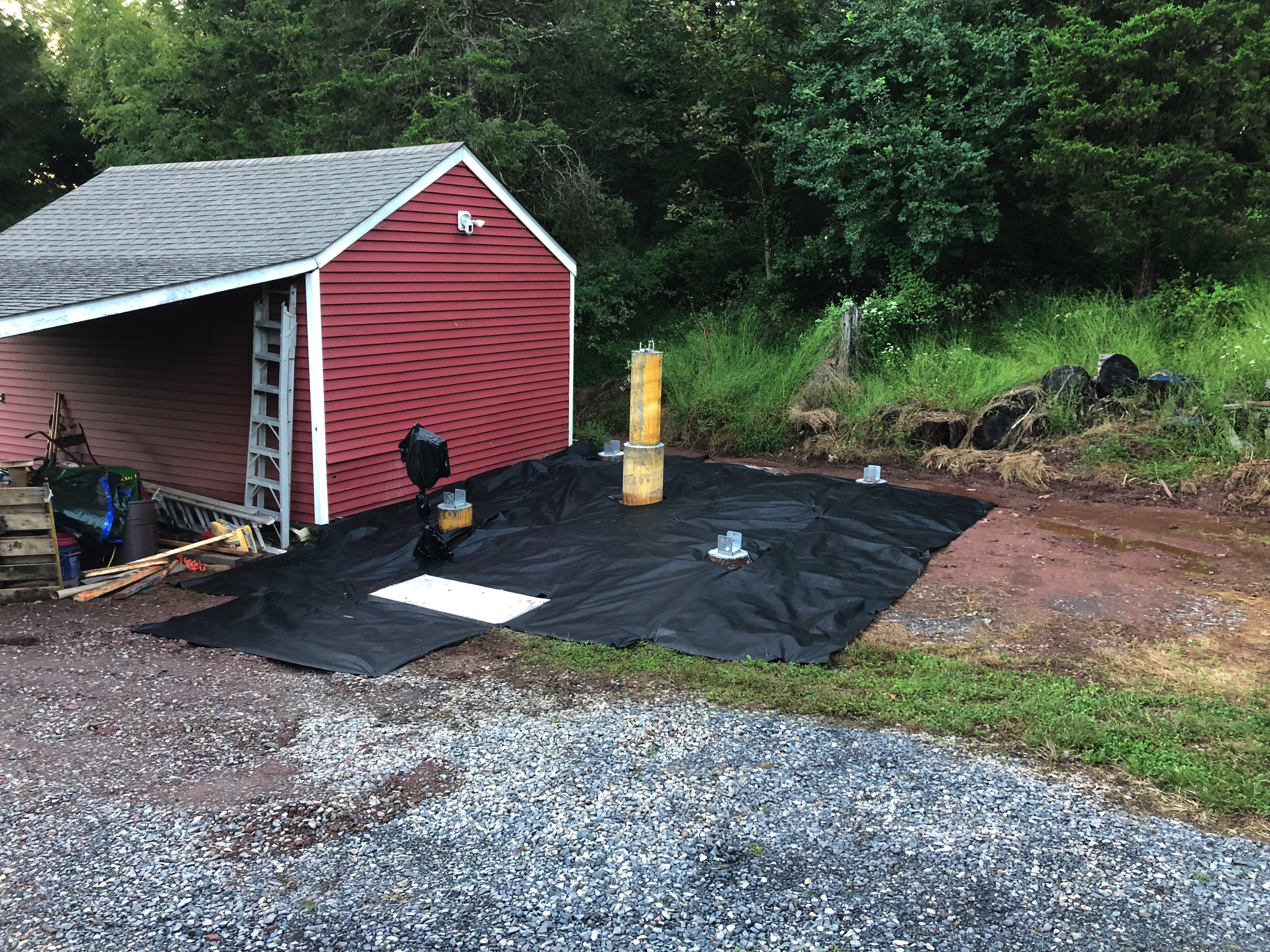

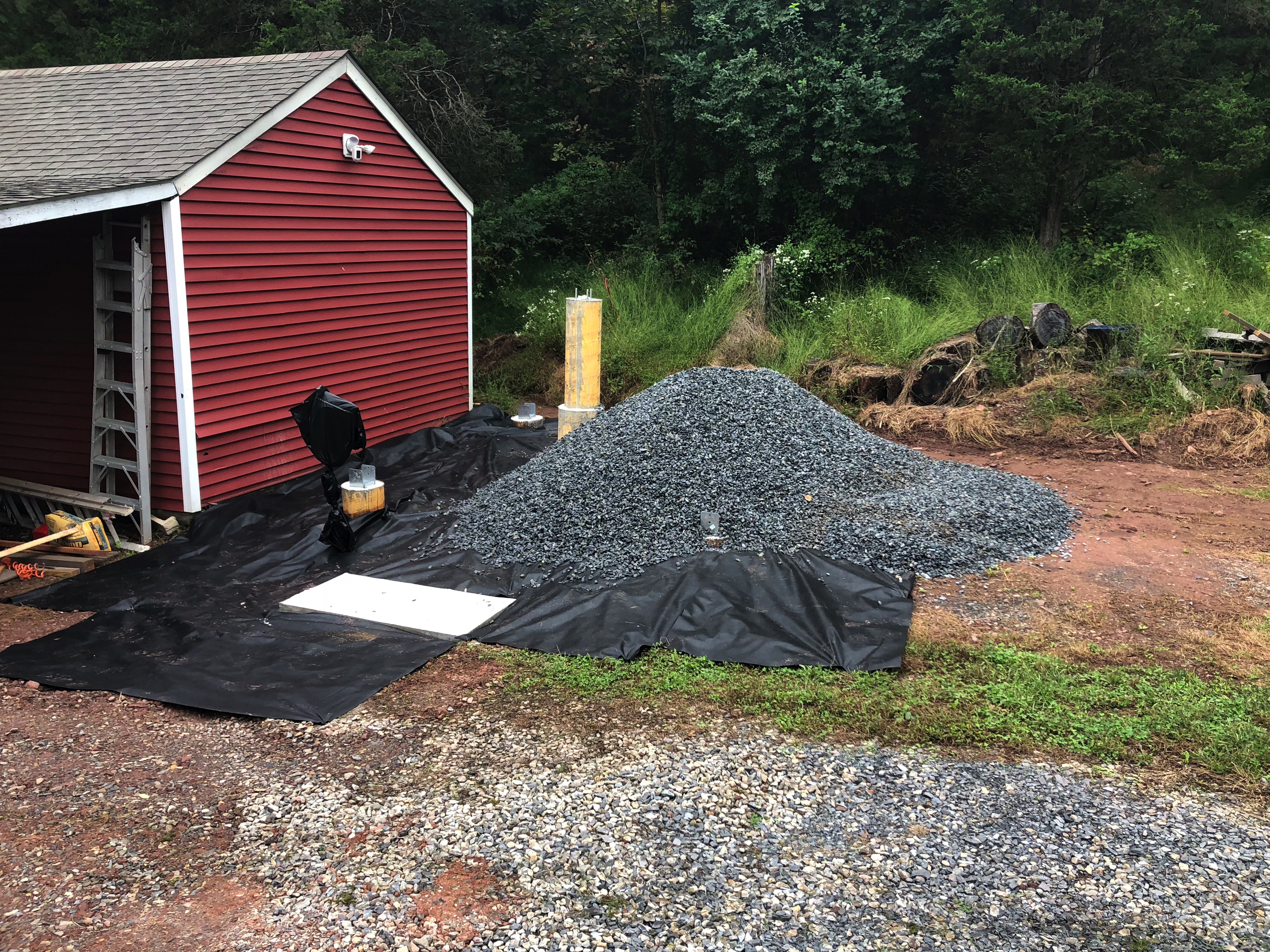

9/18 - Covered up with weed block, ready for 7 tons of QP stone
9/18 - Covered up with weed block, ready for 7 tons of QP stone

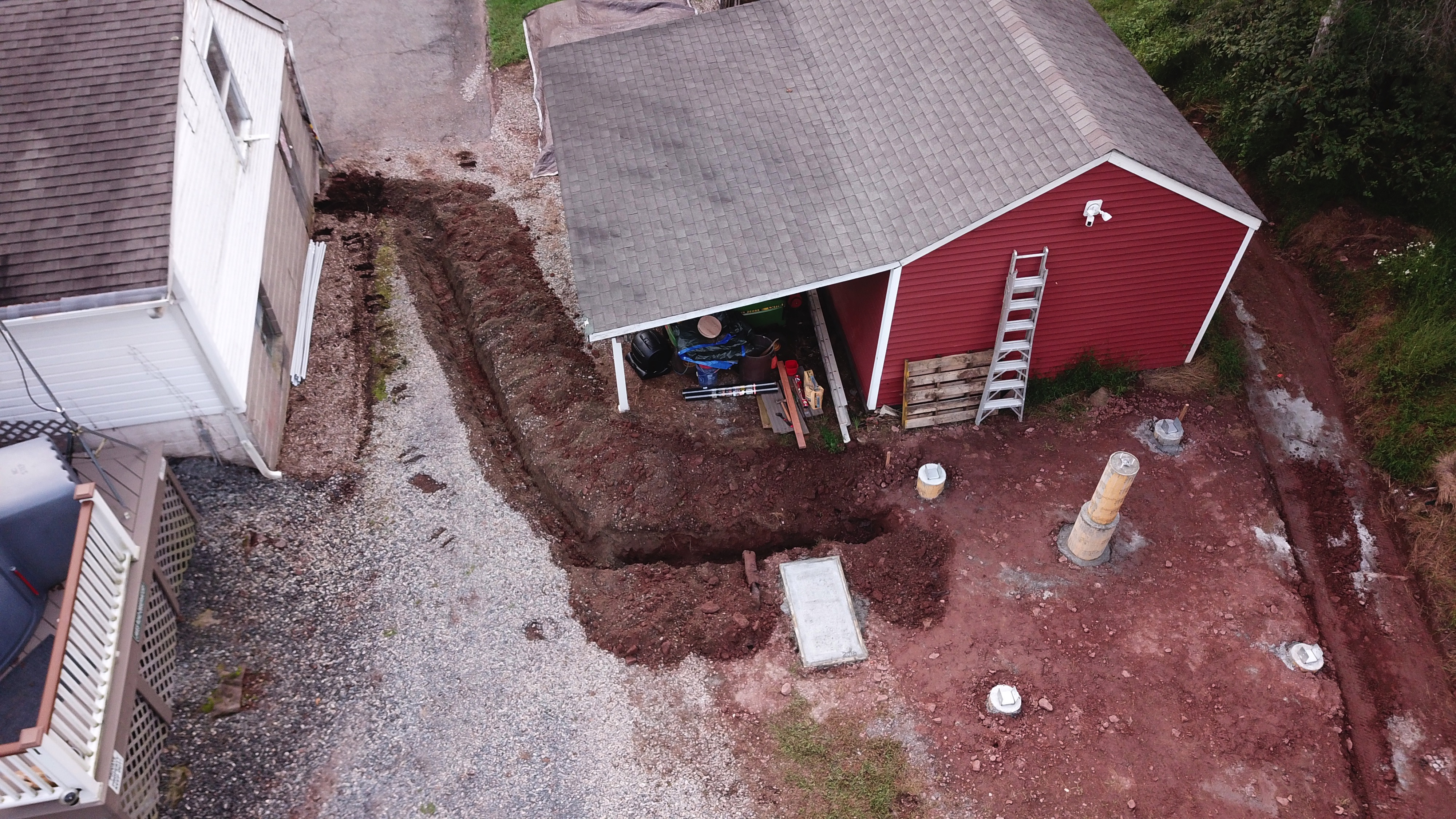

9/16 - Concrete work done!
9/16 - Concrete work done!
9/16 - Concrete work done!  i even dug a trench for Electrical + LAN
9/16 - Concrete work done! i even dug a trench for Electrical + LAN

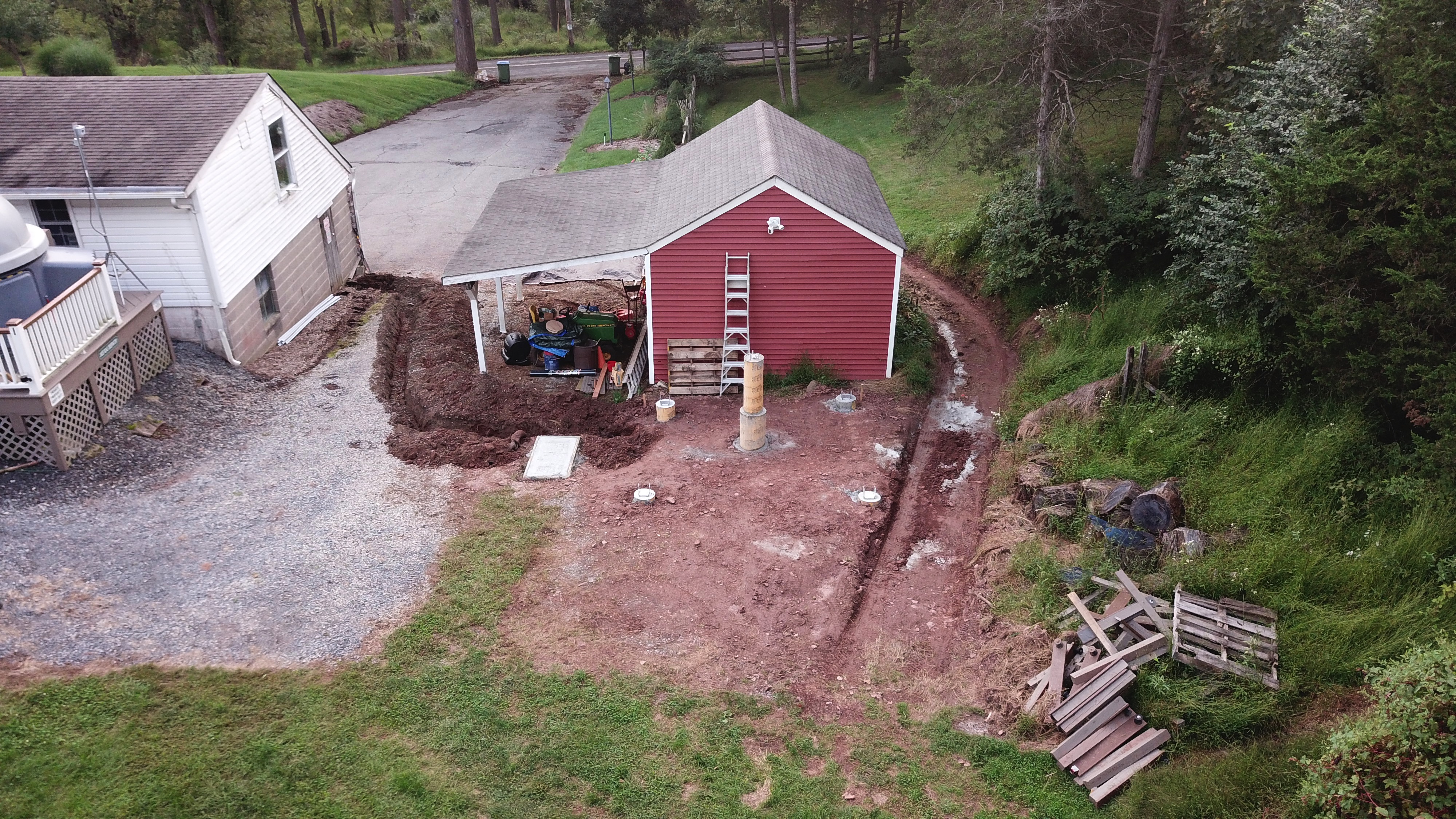

9/16 - Concrete work done!
9/16 - Concrete work done!

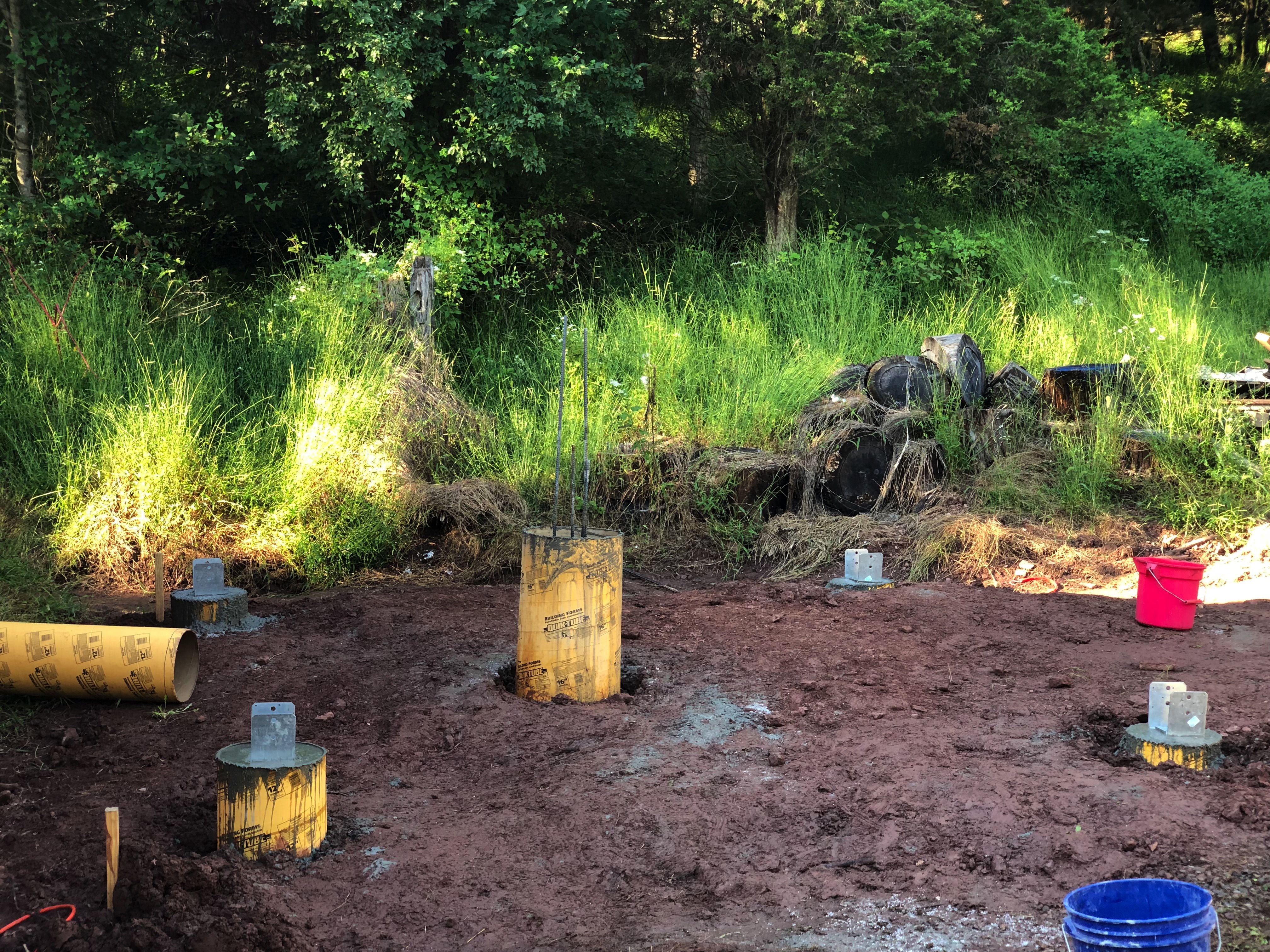

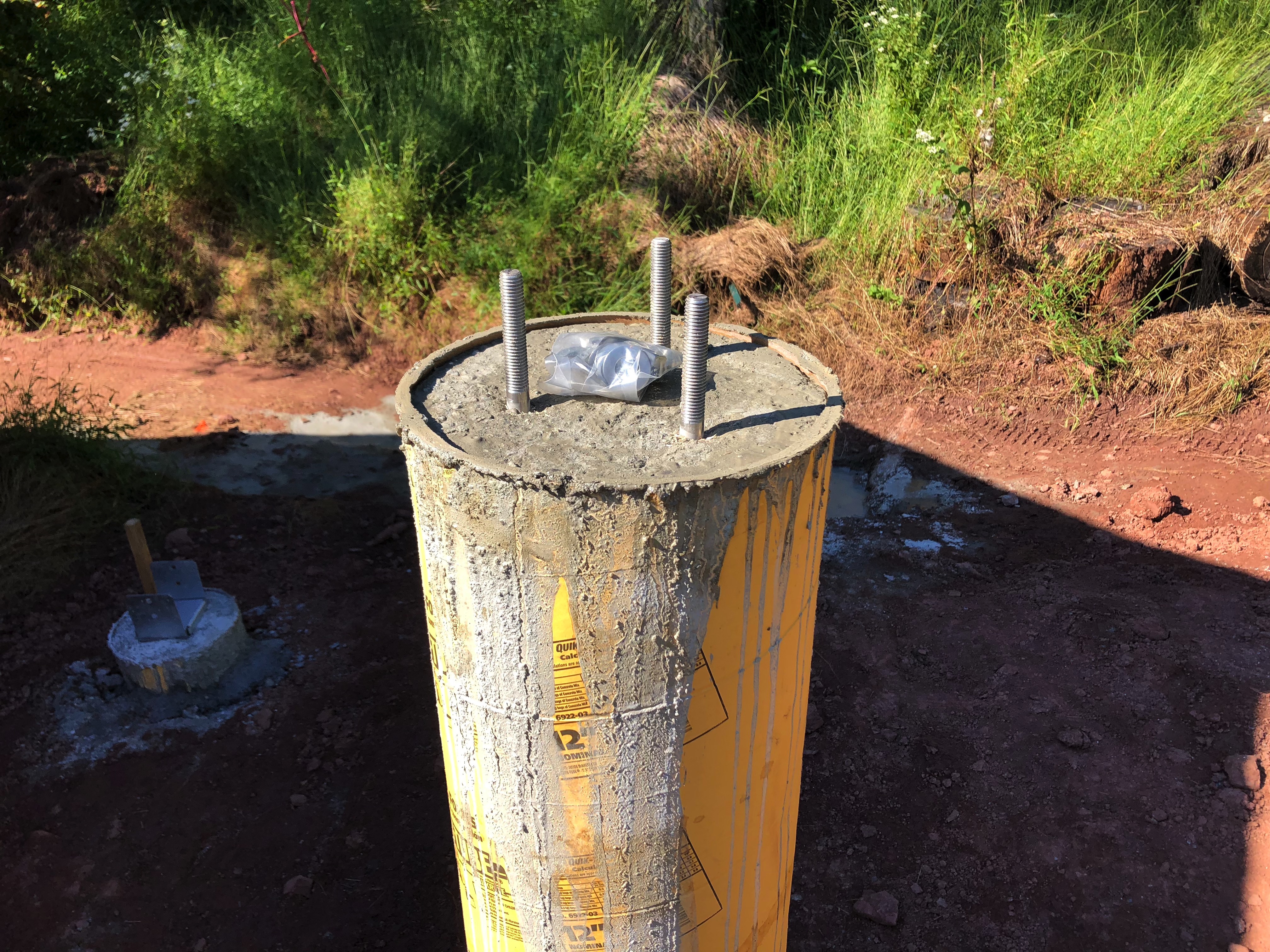

Pier all set for adapter plate for the mount
Pier all set for adapter plate for the mount

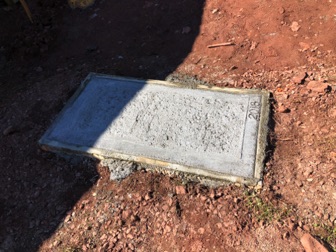

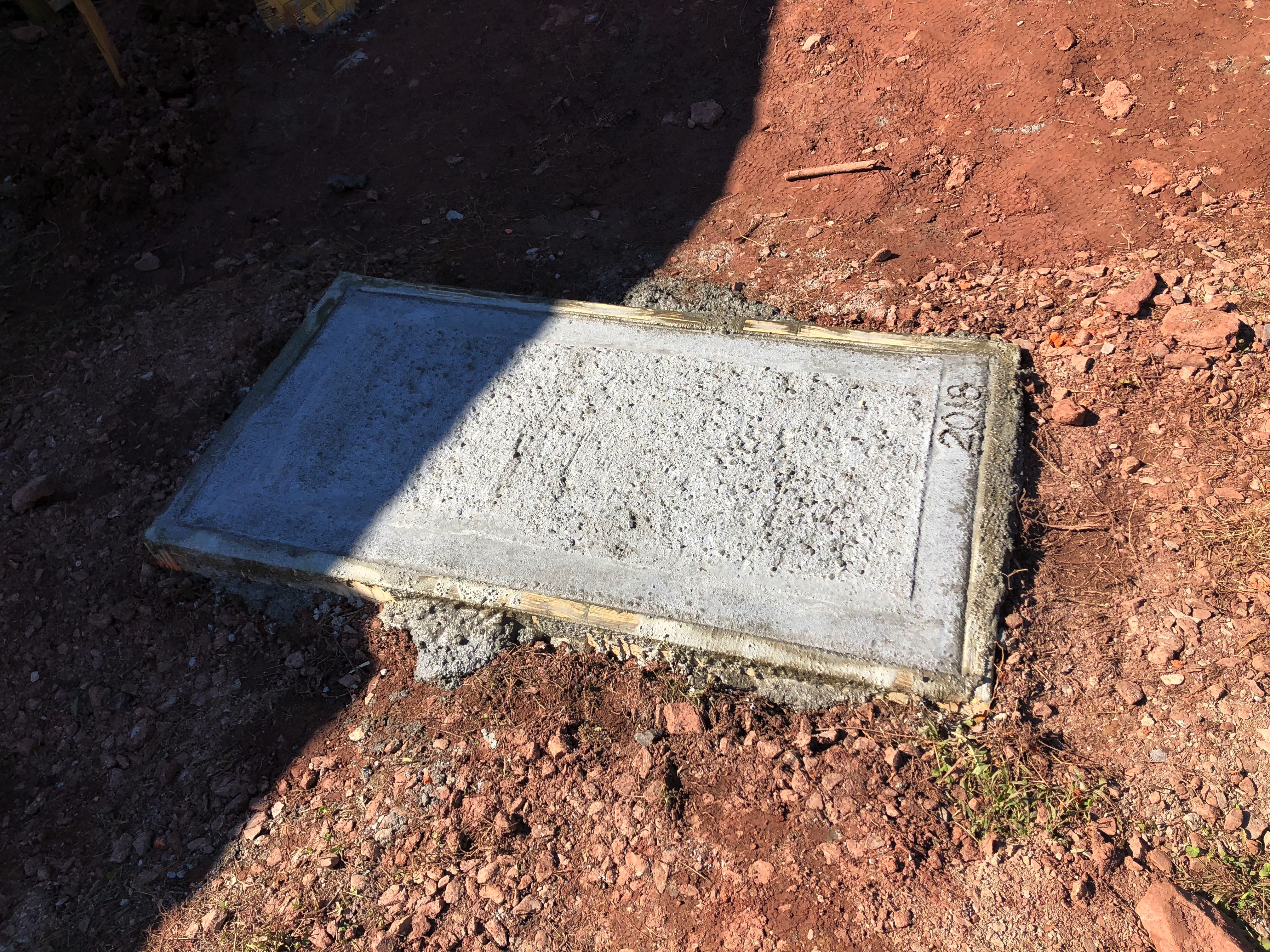

Pad for the stairs to land on
Pad for the stairs to land on
9/16 Used my bucket as a step to dump a bucket at a time into the pier
9/16 Used my bucket as a step to dump a bucket at a time into the pier

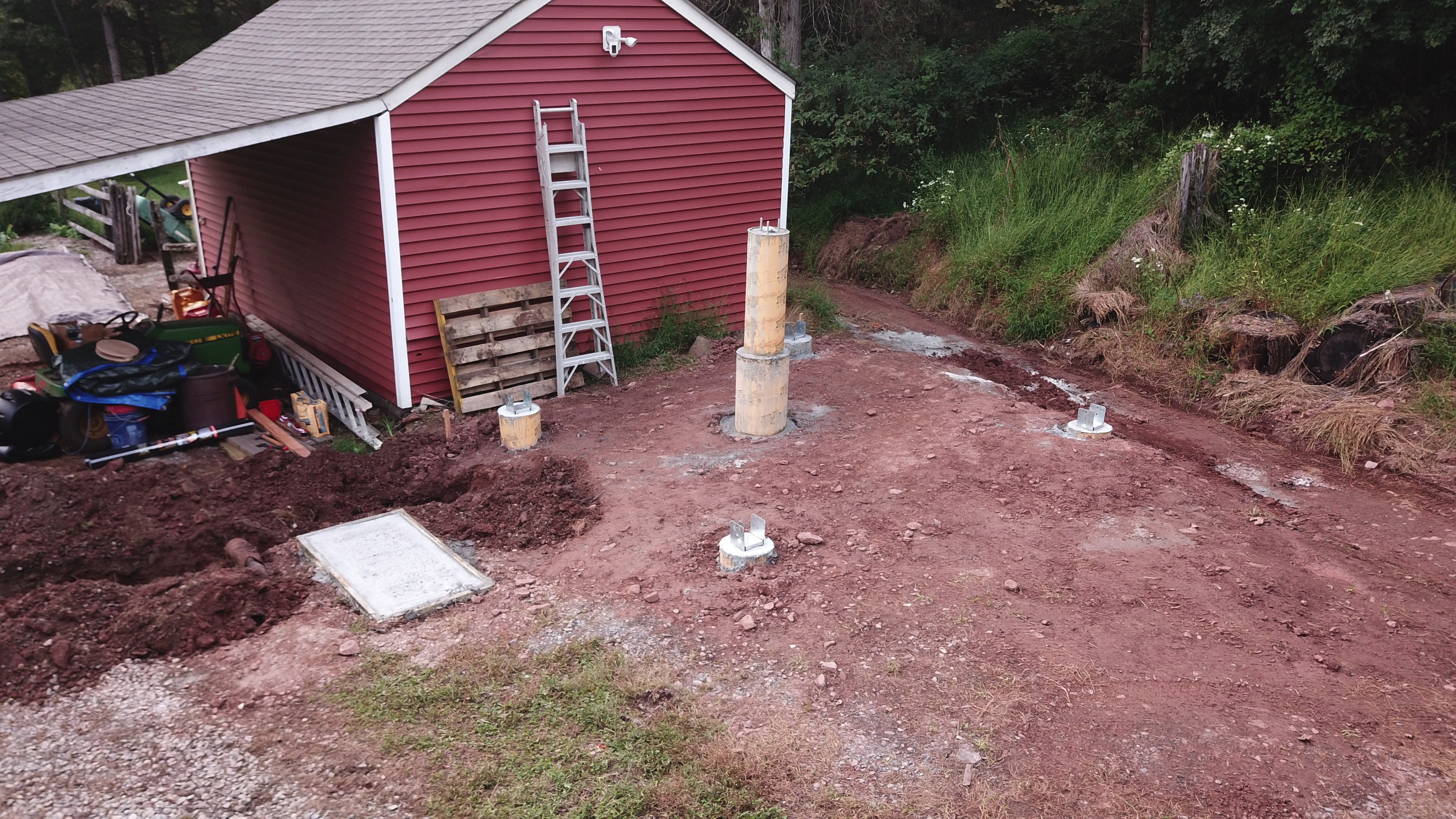

9/15 complete, Pier base and 4 footings poured.
9/15 complete, Pier base and 4 footings poured.

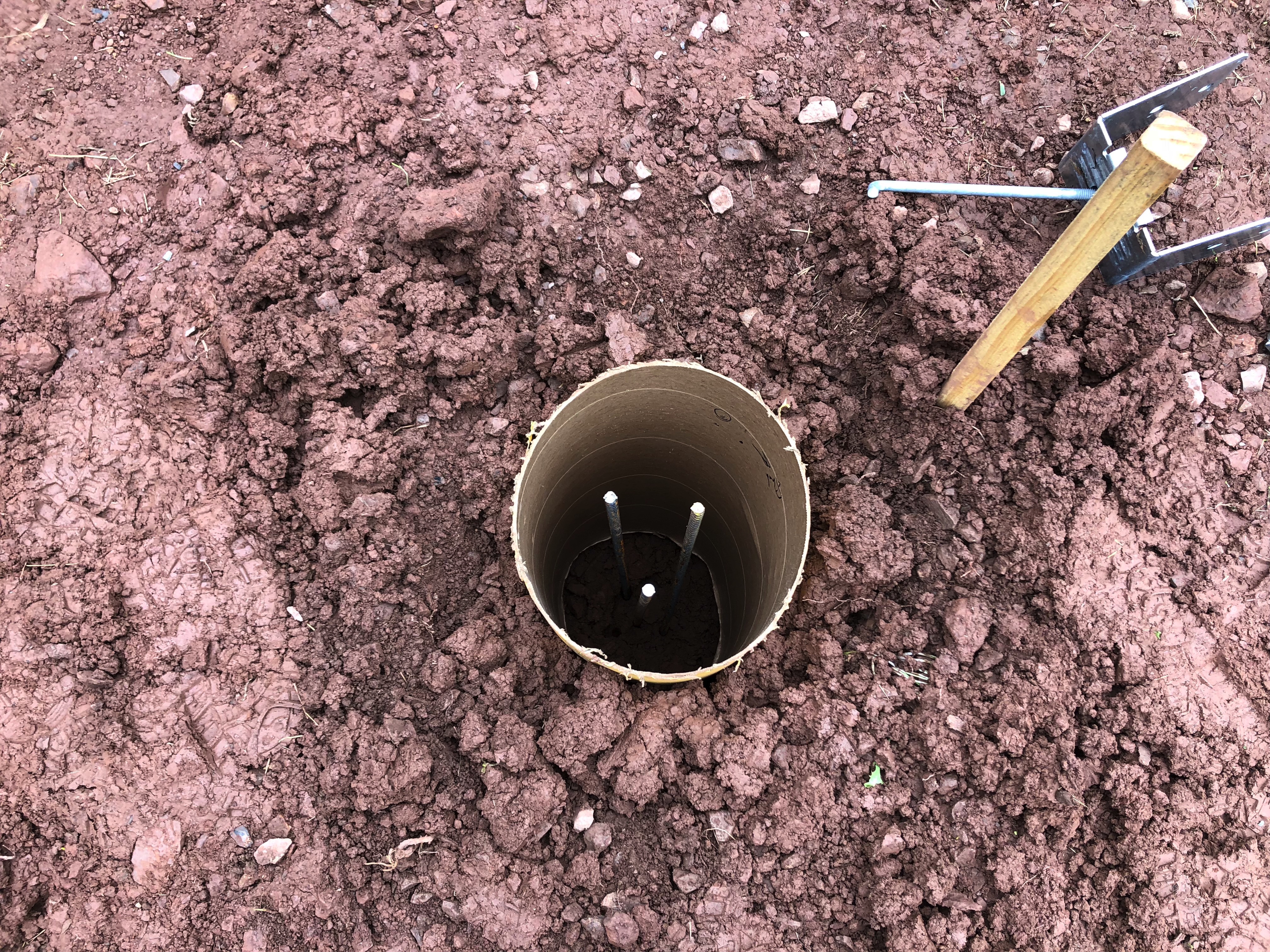

42" in the ground with rebar for added strength
42" in the ground with rebar for added strength

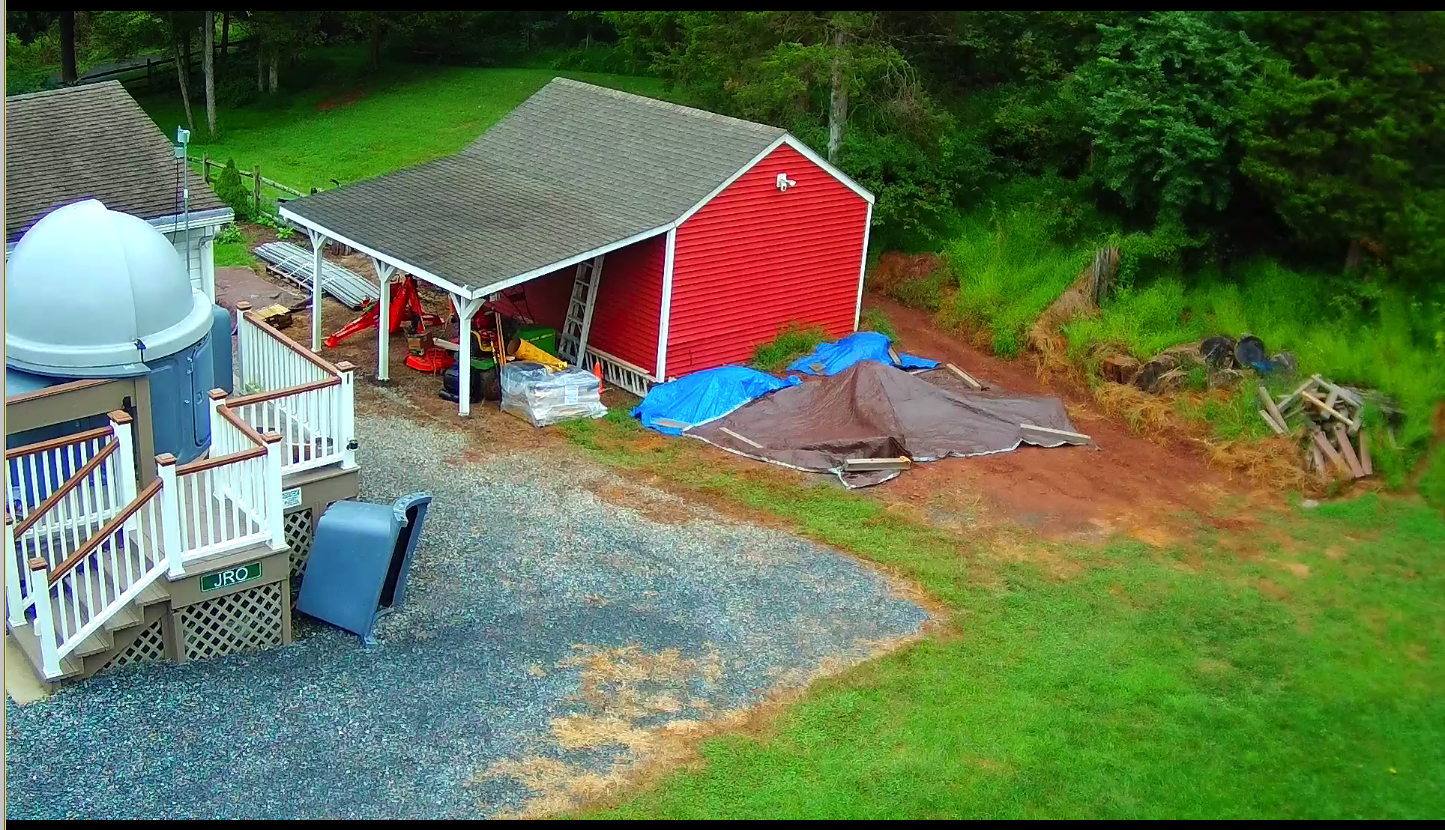

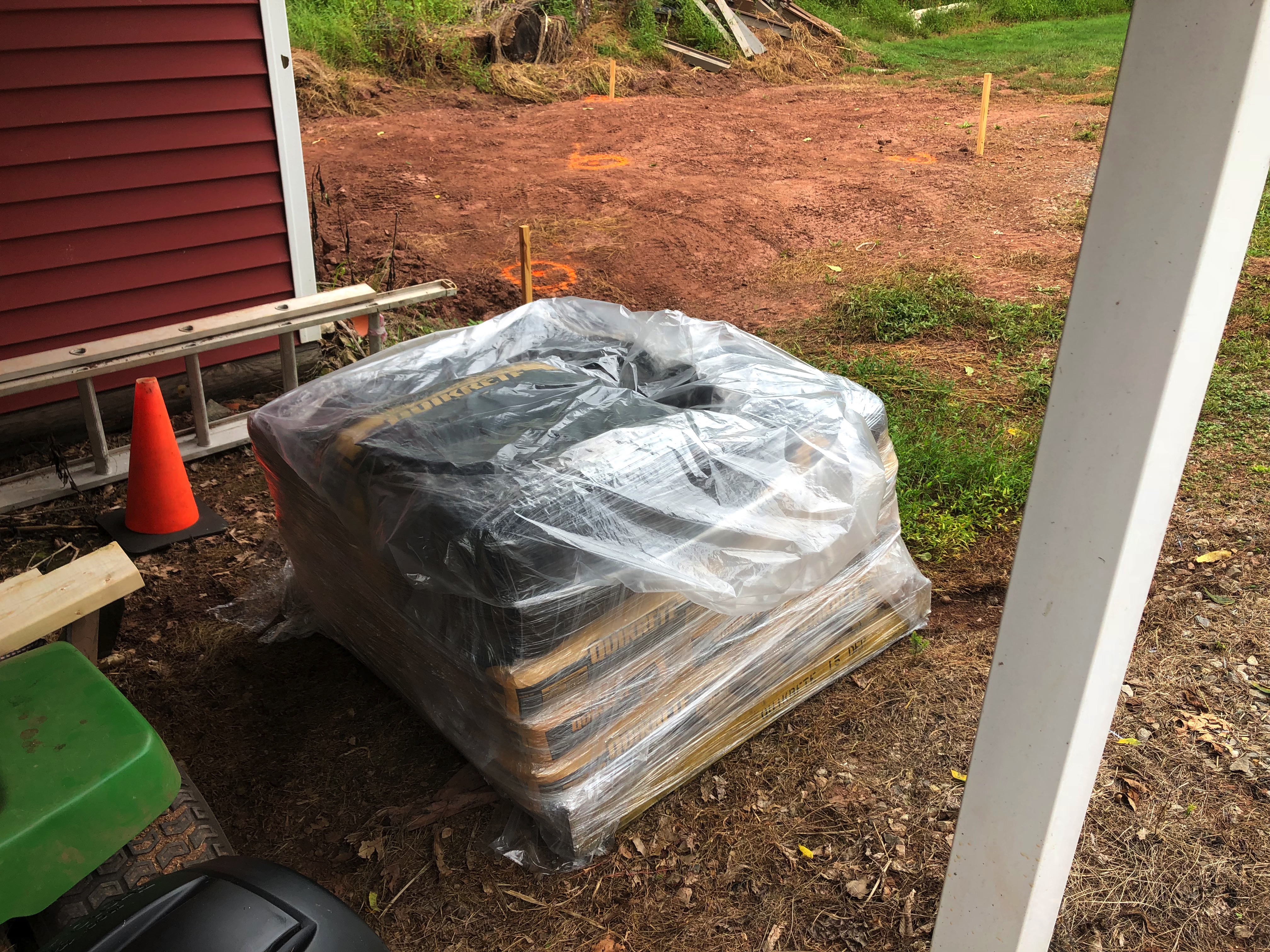

Materials covered up, we're expecting lots of rain
Materials covered up, we're expecting lots of rain

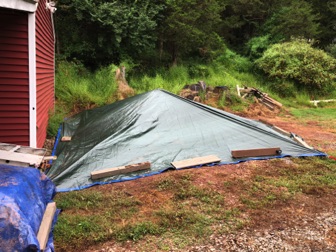

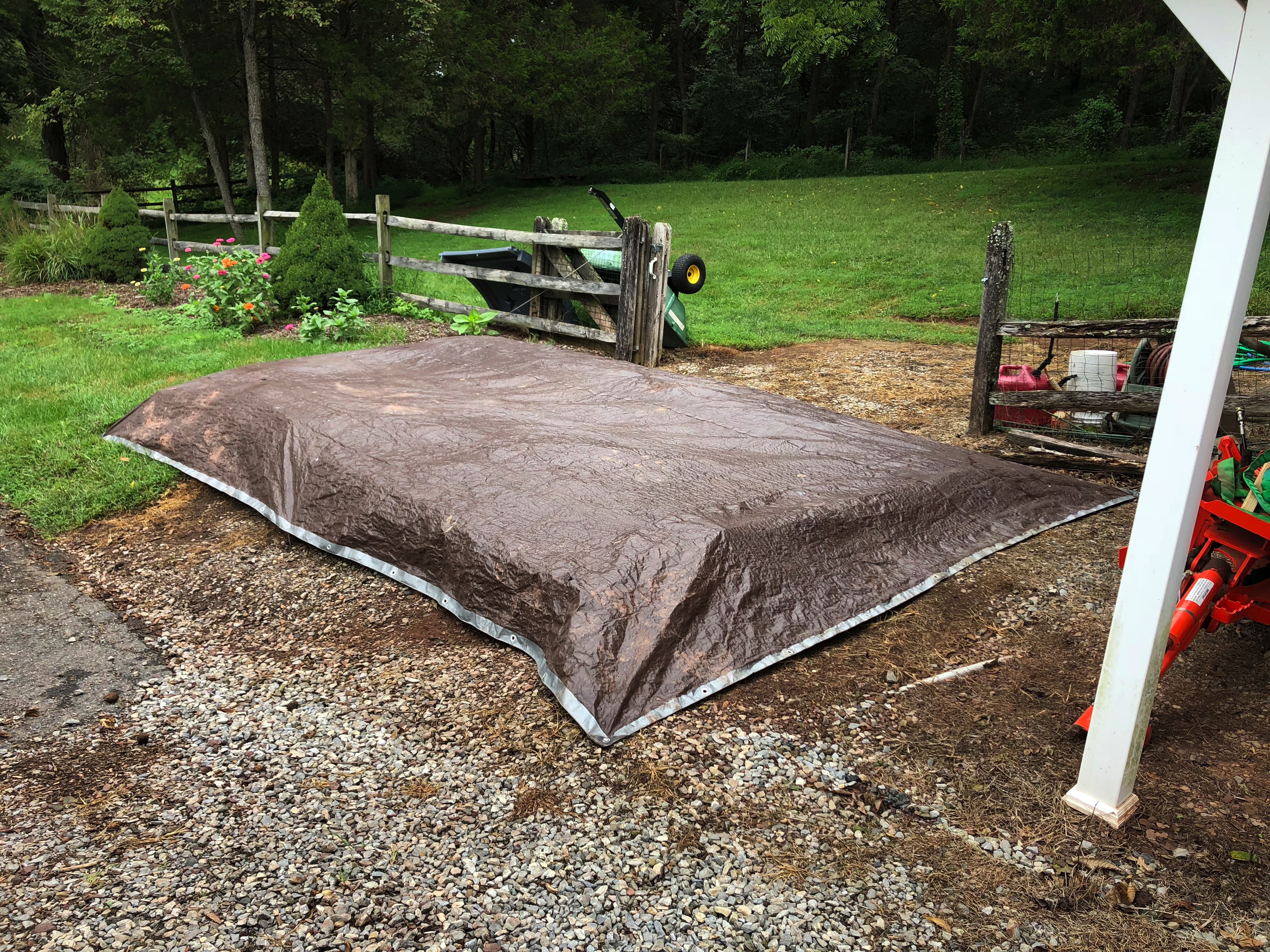

Tubes removed, covered up as best I could, expecting a lot of rain.
Tubes removed, covered up as best I could, expecting a lot of rain.
Tubes in place, just need to add the rebar and mix the concrete.
Tubes in place, just need to add the rebar and mix the concrete.
a couple of bags of Quickcrete
a couple of bags of Quickcrete

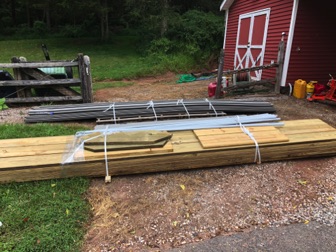

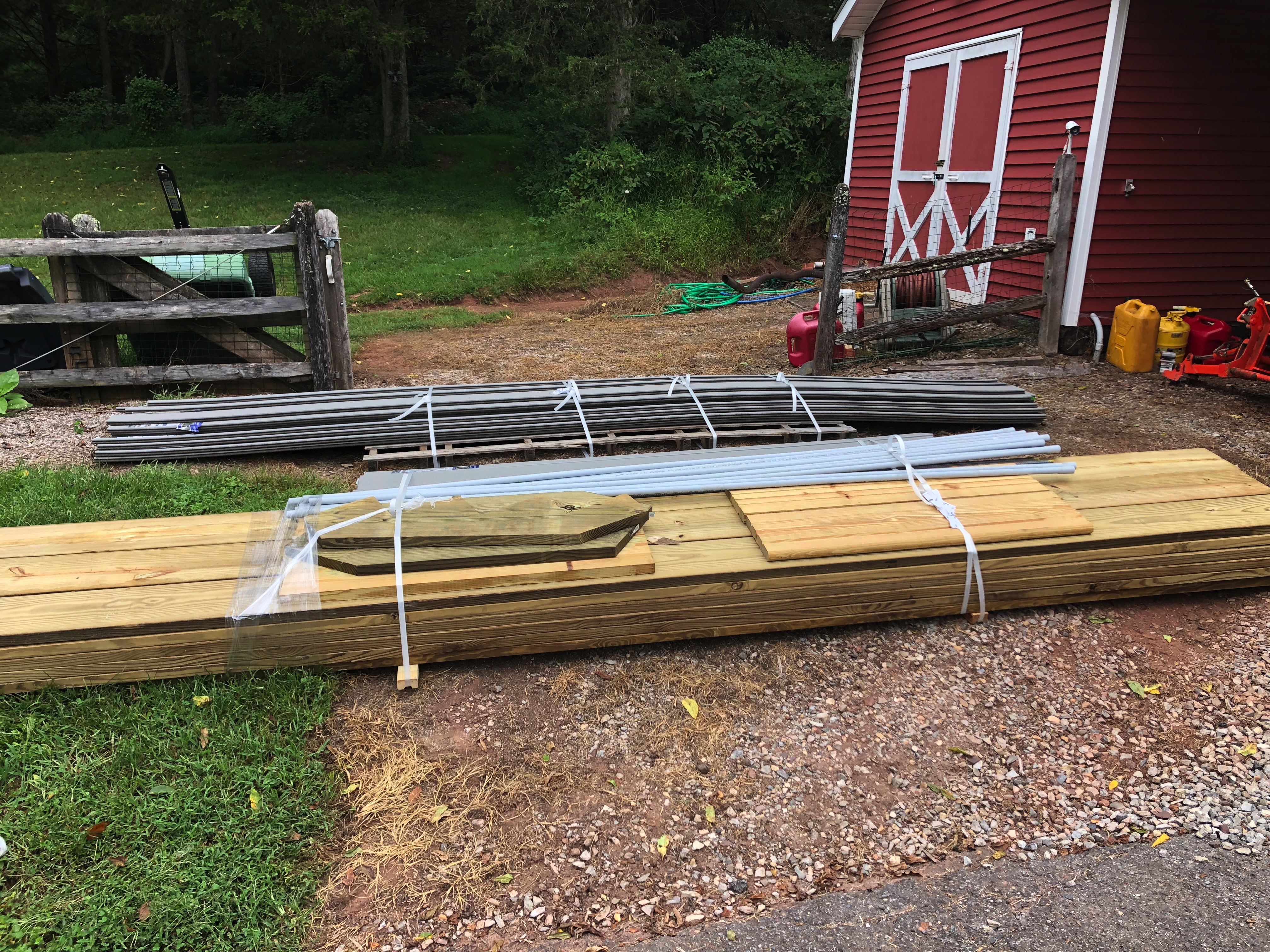

Framing and Decking with stairs
Framing and Decking with stairs

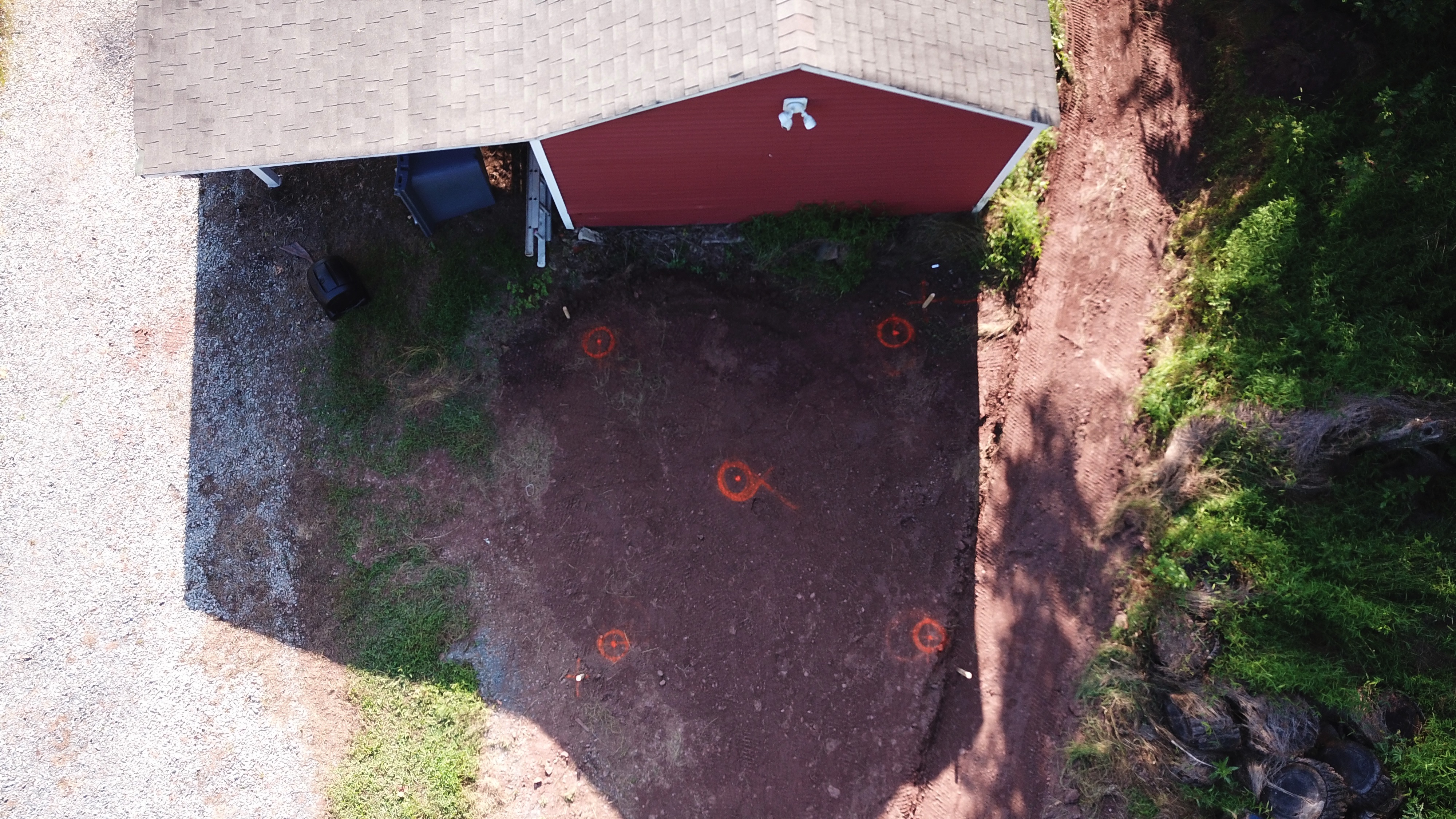

Laid out the new deck, marked for holes for footings and pier.
Laid out the new deck, marked for holes for footings and pier.

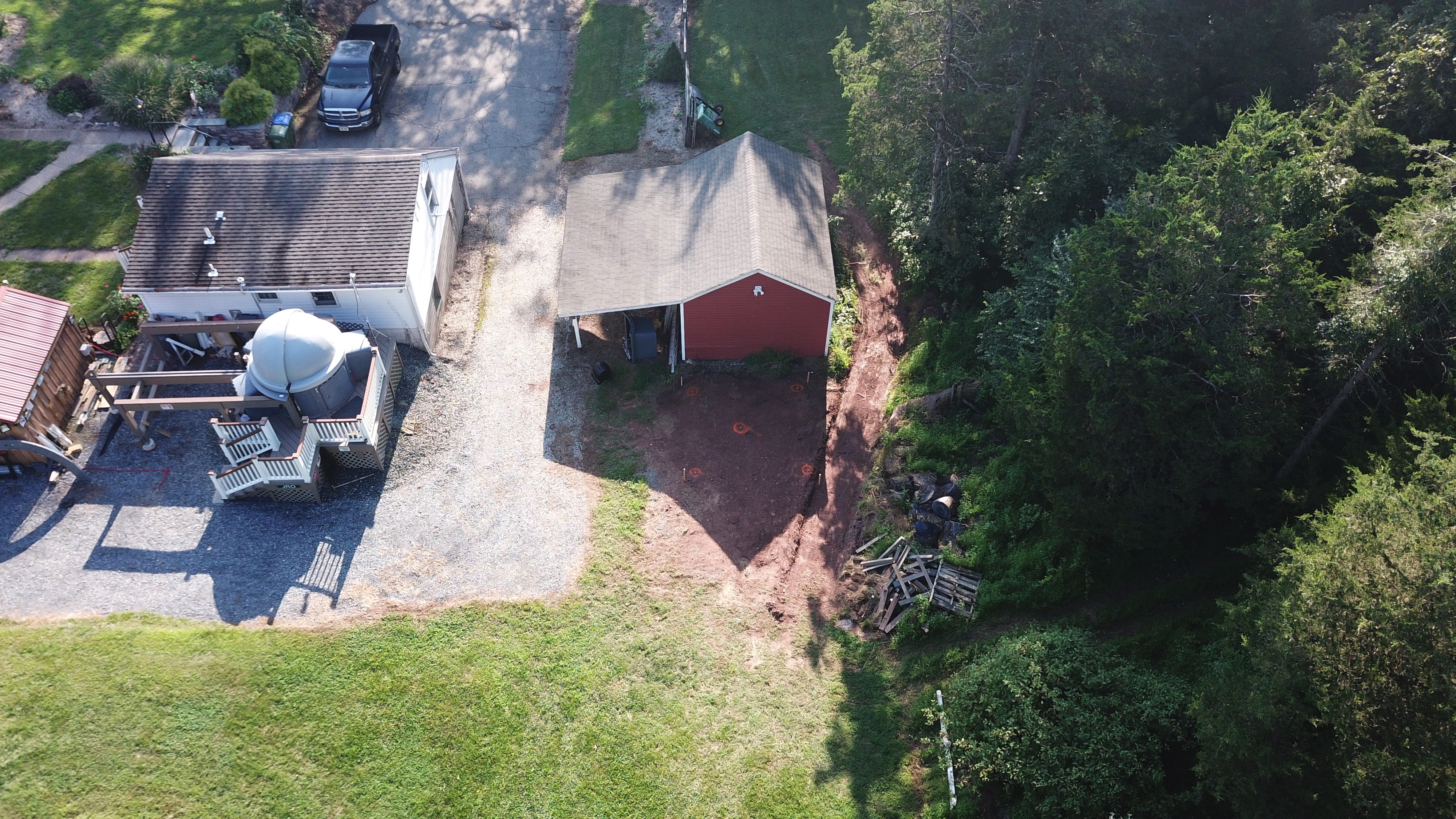

You can see I'm not moving it very far
You can see I'm not moving it very far
This is a good before shot of where I am building the new deck
This is a good before shot of where I am building the new deck

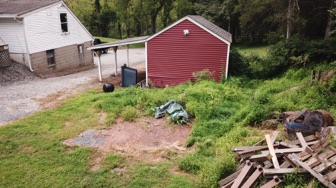

Another good before pic, you can see the spokes from my spoke PZT still sitting there from last summer.
Another good before pic, you can see the spokes from my spoke PZT still sitting there from last summer.
You can see the new sled cut to 5" instead of 12".
You can see the new sled cut to 5" instead of 12".

JRO2 Build

11/16 - Installed the pier plate and adapter for my mount

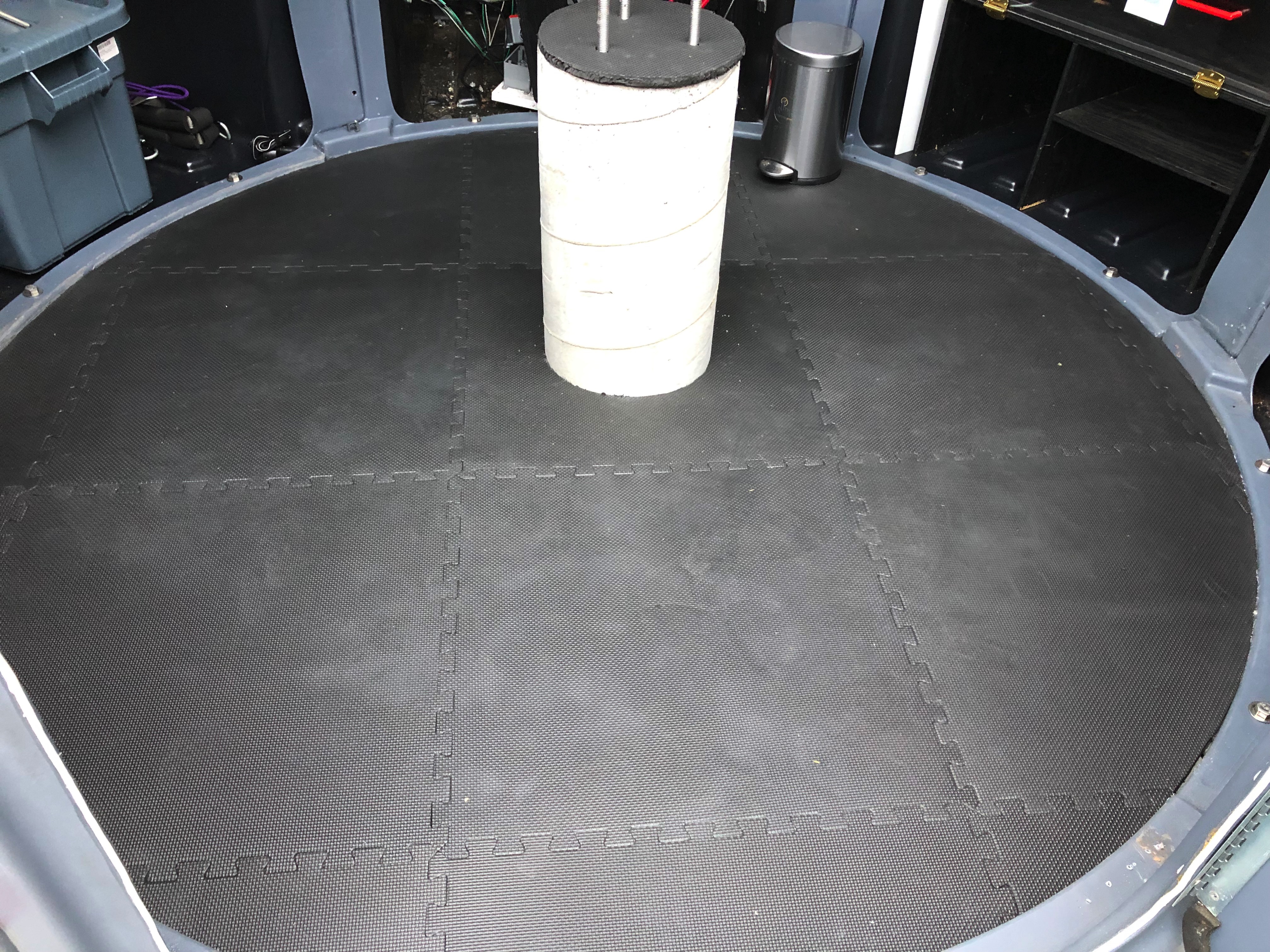

11/12 - Foam tile floor installed

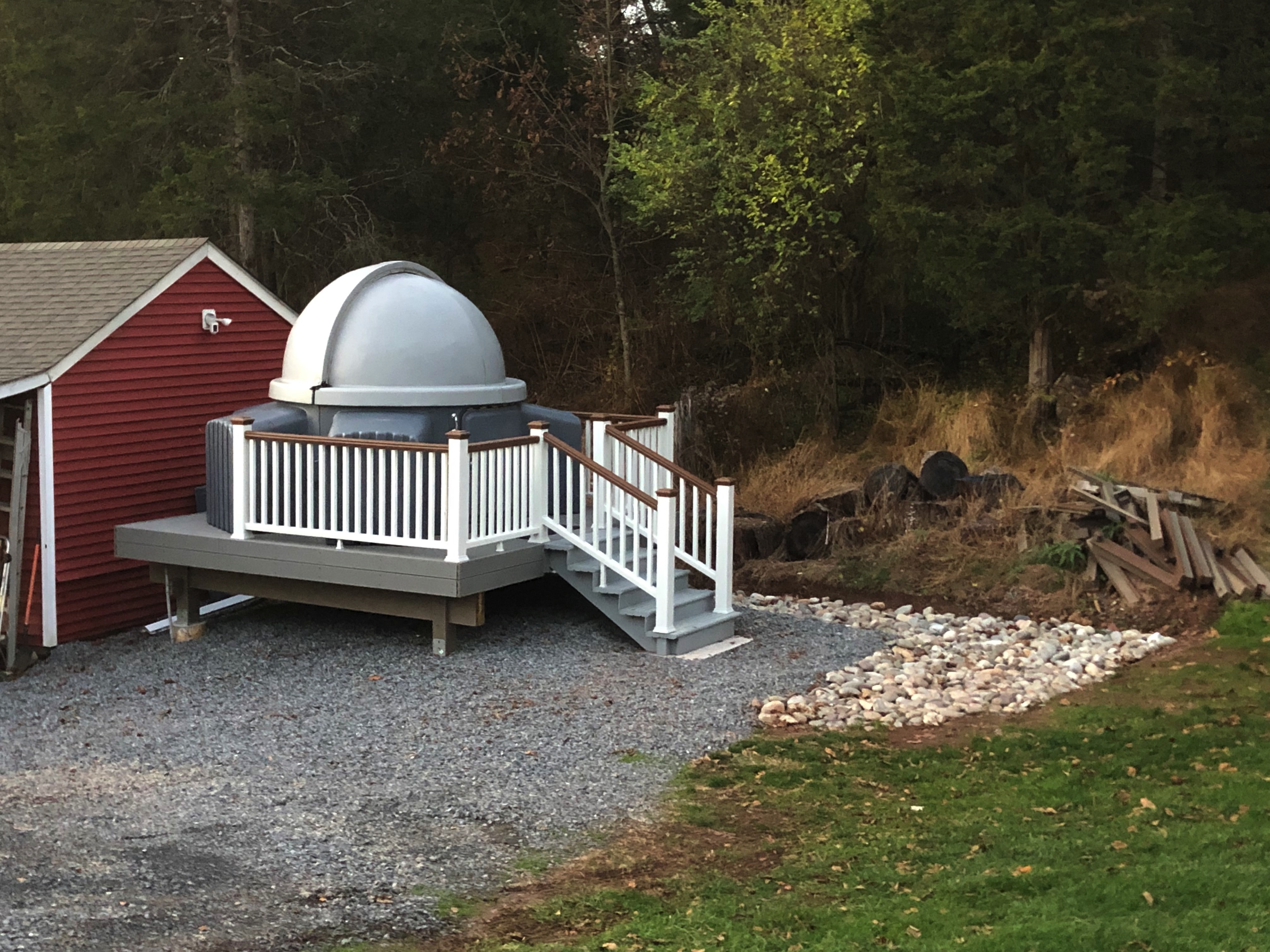

11/8 - Finished stair railings

11/7 - Electrical secured

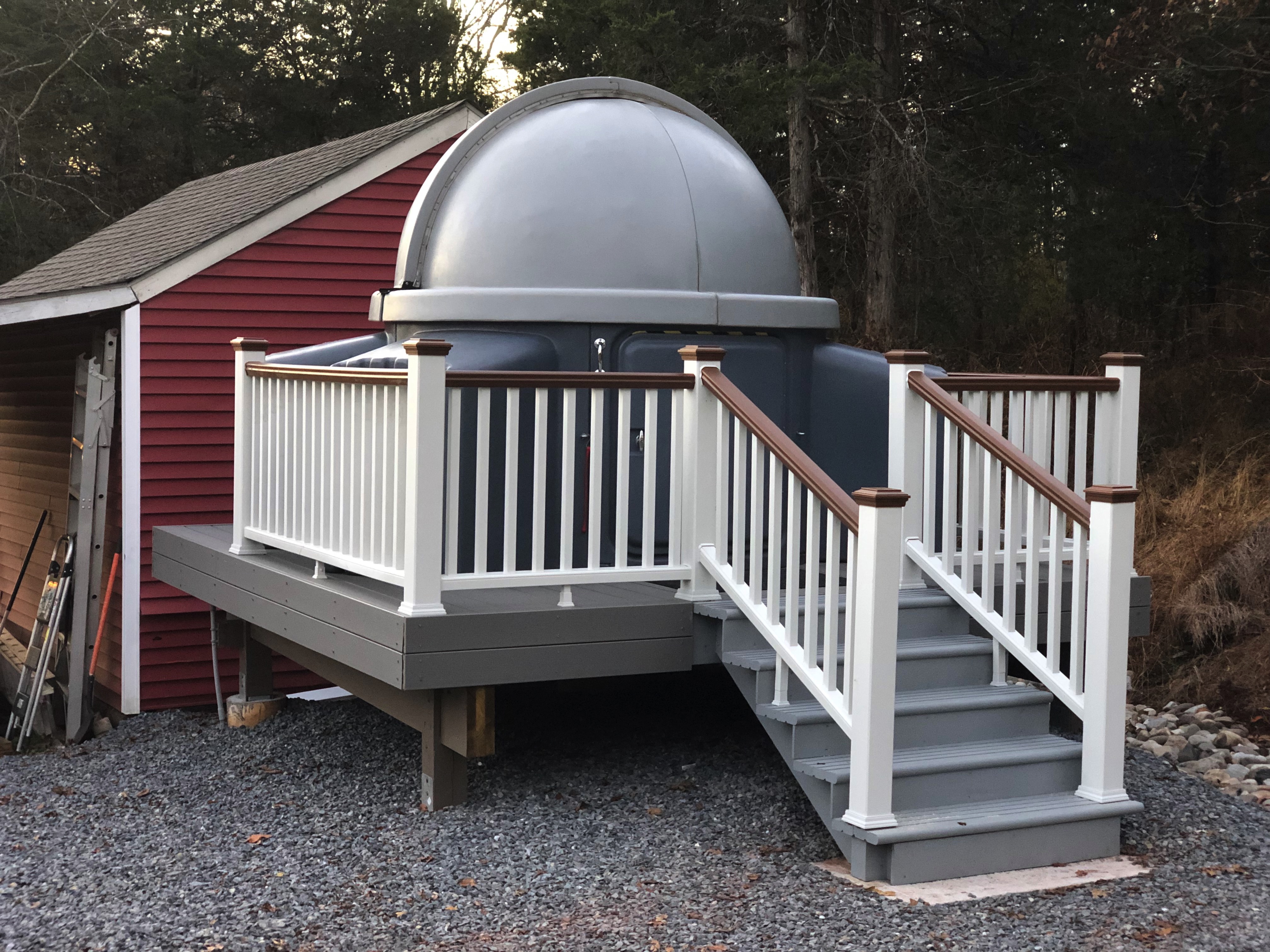

11/5 - Power washed and looking proud, back into an XL-5

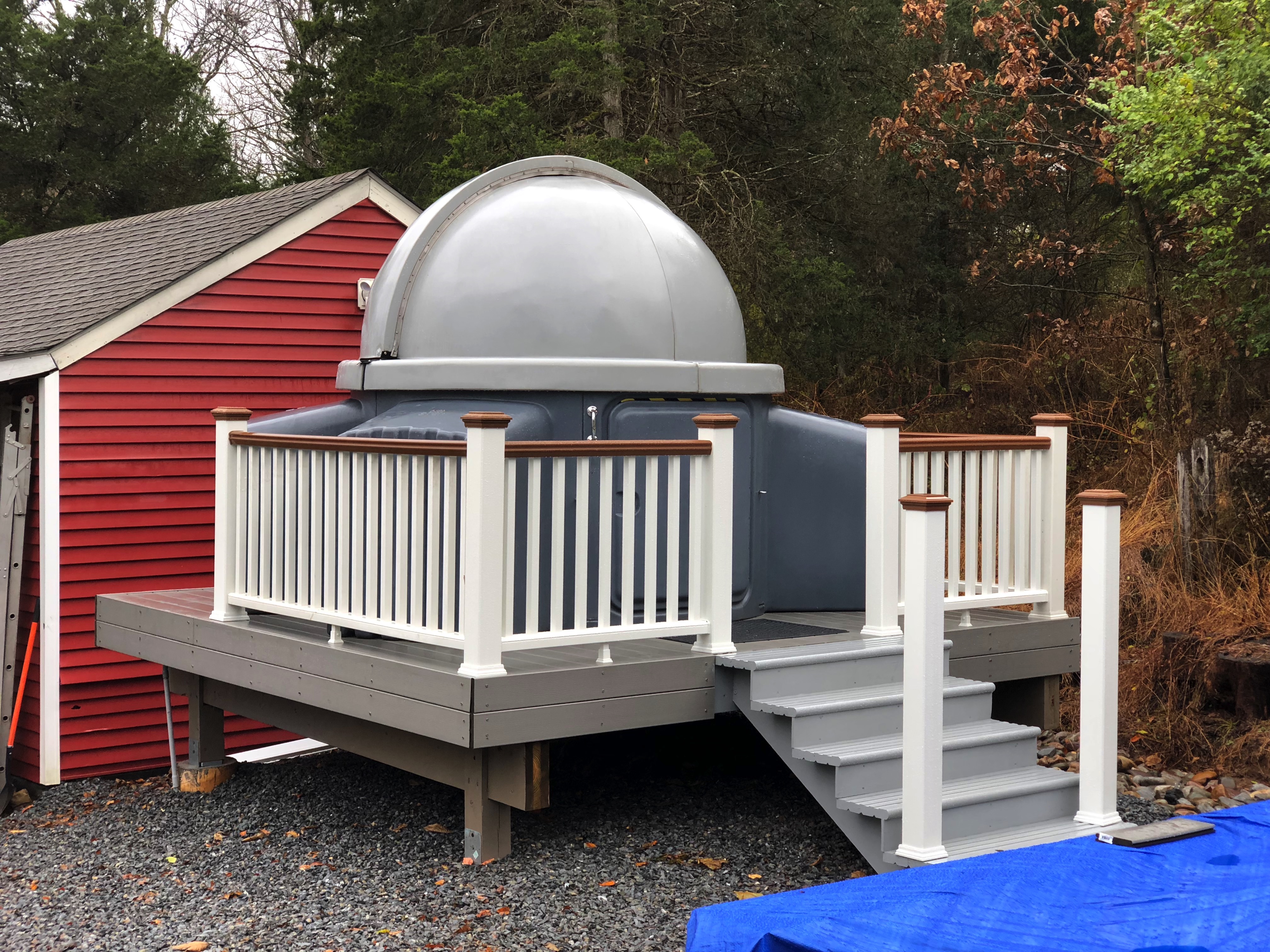

11/4 - Started moving back in, completed electrical and LAN rough in, started installing Trex railings -2/3 complete

11/3 - Pod Moved, dome installed

10/31 - Begin POD move to new deck.  1/2 done!

10/28 - Moving contents of JRO into boxes so I can move the POD to the new deck

10/26 - Deck complete, ready for POD

10/25 - Stained stairs, almost the right color

10/17 - Finished installing posts & installed trim around deck

10/16 - Moved the pad and started making the stairs.  Cut all holes in   decking for posts.  Started installing posts.

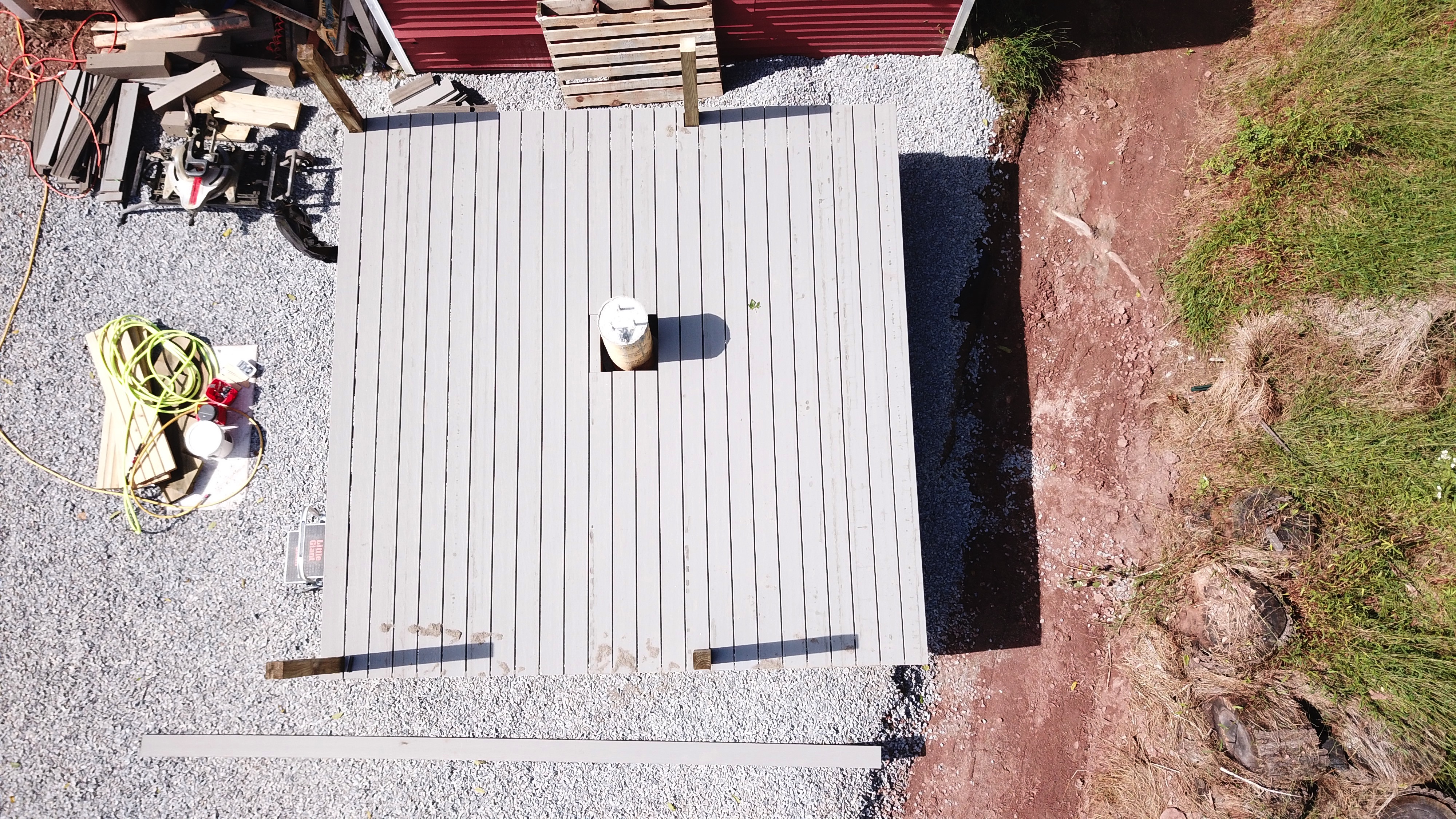

9/23 - 9/24 Posts and Decking installed. (despite me tumbling off the deck on the 3rd board!)

9/22 - Posts set, beams installed, framing installed, blocking installed (a good day)  Ready for Decking!

9/21 - Stone arrived and I spread it all out.  Took apart the old roll-off structure, reusing the beams for the new deck.

9/18 - Covered up with weed block, ready for 7 tons of 3/4" stone

9/17 - electrical and lan roughed in, trench backfilled before the rain

9/15 - 9/16  mixed and poured about 40 x 80lb bags of quickcrete.  Footings, Pier and Pad are all done.  Done with concrete work!

9/13 - STILL Stalled from rain!  Hoping for a better weekend.

9/8 - Stalled for rain

9/7 - Holes made, materials arrived, ready for concrete -covered up due to rain

9/2 - Marked out for QuickTubes, ready to make holes!  I have all the materials for building the new 12x12 deck coming Friday so it will be interesting to see how long this takes me to do.  I hope to do all the concrete work this weekend, weather permitting.

JRO2 is the name of my SkyShedPOD XL-5 as it moved to a new nearby deck.

This page illustrates the build and move
